性能
| 接收机灵敏度 |
270M: -68dBm@10% PER\n130M: -68dBm@10% PER\n108M: -68dBm@10% PER\n54M: -68dBm@10% PER\n11M: -85dBm@8% PER\n6M: -88dBm@10% PER\n1M: -90dBm@8% PER |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 无线局域网数据传输率 |
450 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| 网络标准 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 认证 |
CE, FCC, RoHS |
| 频段 |
2.4 - 2.4835 GHz |
端口 & 界面
| 广域网接口 |
Ethernet (RJ-45) |
| DC-IN插口 |
Y |
能量控制
| 功耗（一般操作） |
5.8 W |
| 输出电压 |
12 V |
| 输出电流 |
1 A |
安全
| 支持安全算法 |
64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC（媒体存储控制）地址过滤 |
Y |
天线
| 天线类型 |
Omni |
| 天线增益水平（最大值） |
5 dBi |
| 天线接口类型 |
RP-SMA |
| 天线数量 |
3 |
| 可拆式天线（S） |
Y |
重量和尺寸
| 深度 |
129.93 mm |
| 宽度 |
194.82 mm |
| 高度 |
36.2 mm |
环境条件
| 储存温度范围 (T-T) |
-40 - 70 °C |
| 运行湿度范围(H-H) |
10 - 90% |
| 储存相对湿度范围（H - H） |
5 - 90% |
系统要求
| 兼容性操作系统 |
Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8\nMAC OS, NetWare, UNIX, Linux |
另外
| 产品色彩 |
White |
| 数据传输率（最大） |
450 Mbit/s |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |
802.11 b/g/n, Fast Ethernet, 450 Mbit/s, 2.4 GHz, 3x 5dBi, 12V
- 450Mbps wireless transmission rate, brings smooth wireless N experience
- Supports multiple operating modes: Access Point, Client, Universal/ WDS Repeater, Wireless Bridge
- Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
- Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
What This Product Does

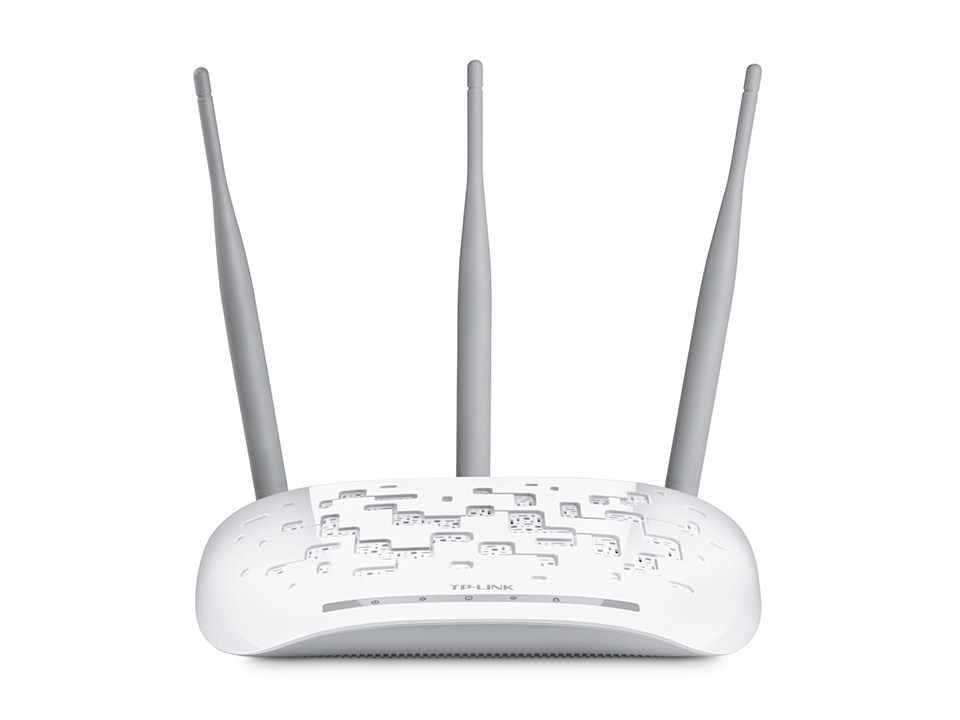

The TP-LINK Wireless N Access Point TL-WA901ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.
Wireless N Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
Multiple Operating Modes- Easy to Build WLAN
Supports AP Client, Bridge, Repeater and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating mode also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.
Passive PoE Supported-More Flexible Deployment
The TL-WA901ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
