安全
防火墙 |
SPI |
支持虚拟专用网 |
PPTP, L2TP, IPSec |
防火墙 |
Y |
MAC(媒体存储控制)地址过滤 |
Y |
支持安全算法 |
128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
联网
支持ISDN连接 |
Y |
接收机灵敏度 |
270M: -68dBm@10% PER\n130M: -68dBm@10% PER\n108M: -68dBm@10% PER\n54M: -68dBm@10% PER\n11M: -85dBm@8% PER\n6M: -88dBm@10% PER\n1M: -90dBm@8% PER |
网络标准 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
以太网LAN特性
布线技术 |
10/100/1000Base-T(X) |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
以太网LAN接口类型 |
Gigabit Ethernet |
全双工传输 |
Y |
软件
可支持的Linux操作系统 |
Y |
可支持的Mac操作系统 |
Y |
可支持的Windows操作系统 |
Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
管理功能
通用即插即用(UPnP) |
Y |
支持服务质量(QoS) |
Y |
重启按钮 |
Y |
网上管理 |
Y |
其他功能
支持无线局域网数据传输率 |
11, 54, 450 Mbit/s |
输入电压 |
12 V |
Mobile network connection |
N |
xDSL connection |
N |
频率范围 |
2.4 - 2.4835 GHz |
USB 端口数量 |
1 |
机架安装 |
N |
输入电流 |
1.5 A |
频段 |
2.4 GHz |
USB版本 |
2.0 |
协议
DMZ支持 |
Y |
动态主机配置协议客户 |
Y |
动态主机配置协议服务器 |
Y |
能量控制
功耗(一般操作) |
10 W |
支持以太网(PoE) |
N |
无线局域网的特点
Wi-Fi标准 |
IEEE 802.11n |
WLAN的数据传输率(最大值) |
450 Mbit/s |
无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
天线
天线类型 |
External |
天线增益水平(最大值) |
5 dBi |
天线接口类型 |
RP-SMA |
天线数量 |
3 |
可拆式天线(S) |
Y |
重量和尺寸
深度 |
141 mm |
宽度 |
225 mm |
高度 |
30 mm |
环境条件
储存温度范围 (T-T) |
-40 - 70 °C |
储存相对湿度范围(H - H) |
5 - 90% |
运行湿度范围(H-H) |
10 - 90% |
另外
产品色彩 |
Blue |
以太网连接器 |
Y |
过滤 |
ID, IP |
包括 AC 适配器 |
Y |
以太网路(RJ-45)连接接口数量 |
4 |
运行温度范围(T - T) |
0 - 40 °C |

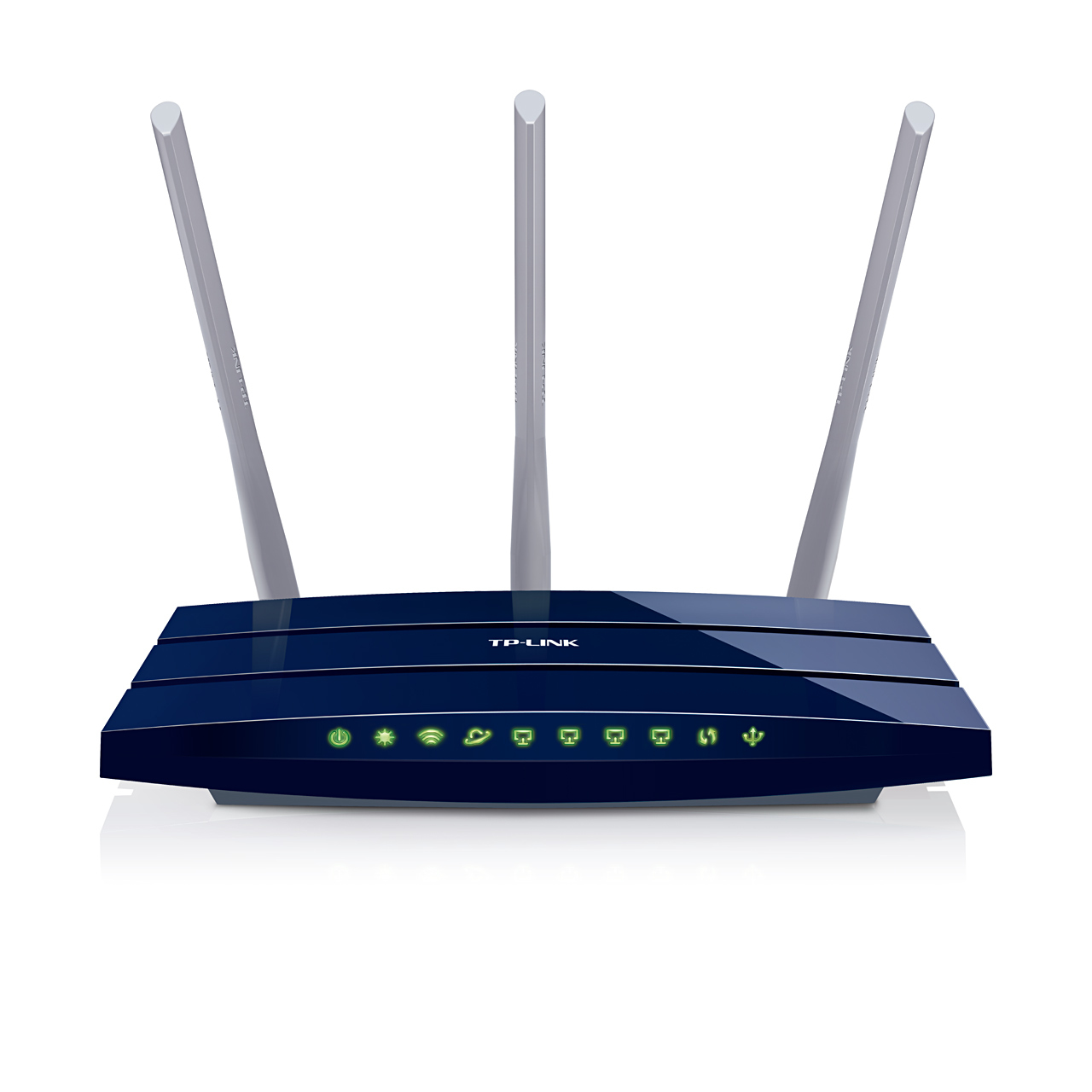

TL-WR1043ND - Gigabit Ethernet, WLAN, 300Mbit/s, 802.11b/g/n, DHCP, DMZ, SPI
What This Product Does
300Mbps Ultimate Wireless N Gigabit Router TL-WR1043ND is a combined wired/wireless network connection device integrated with internet-sharing router and 4-port switch. It creates wireless network with incredibly high speeds of up to 300Mbps, which ensures that you are free to simultaneously enjoy multiple high-bandwidth consuming and interruption sensitive applications such as streaming HD video, making VoIP calls, sharing large files and playing online games. Specially, it equipped with a USB storage port on the back of the router for connecting USB storage devices to the network, for convenient resource sharing for everyone on the network.
Gigabit Ports - Incredible Bandwidth
With built-in Gigabit Ethernet Switch, TL-WR1043ND provides more powerful data processing abilities, which unleashes the full potential of the N-abled freedom, eliminating bottlenecks in transferring speed between megabit wired and 11n wireless connection. Meanwhile, everything they do will be faster and more efficient, thus users are sharing large files such as high definition video in minutes instead of hours.
Wireless N - Extreme Speed & Range
Complies with the IEEE 802.11n standard, users can create a wireless network and get up to 18X the speed and 6X the range of conventional 11g products. The router has the speed to work smoothly with almost any bandwidth intensive application including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles turning your home and even your yard into one big hot - spot.
More Stable Wireless Signals
Signal Sustain Technology (SST) dramatically increases link robustness and throughput by simultaneously transmitting across three spatially-diverse signal paths, and incorporating information from three receivers simultaneously within the signal processing at the receiver. Network connection drops greatly reduced, link robustness and throughput increased, achieves, on average, 50 percent greater sustained throughput at range than 2x2 MIMO systems.
Clear Channel Assessment (CCA) applies the existing WLAN listen-before-talk rule to the bandwidth needed for binding channels. It automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
Sharing a Printer with Multiple Computers
It is no secret that printers are often difficult to use, simply because a computer often must be connected directly to it in order to print. With the TL-WR1043ND, users need simply connect the USB printer to the USB port on the back of the router and run the USB Printer Controller on PC.
Share Files & Media, at Home & Away
TL-WR1043ND allows users to attach a range of USB storage devices directly to the router, making it easy and convenient for users to access their data locally or through the Internet with FTP server functions.
Quick Secure Setup
Compatible with Wi-Fi Protected Setup™ (WPS), TL-WR1043ND features Quick Security Setup that allows users to almost instantly setup their security simply by pressing the "QSS" button on the router automatically establishing a WPA2 secure connection, which is more secure compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password!
IP QoS - Control Bandwidth Reasonably
Among the wireless network, indiscriminate Internet surfing and bandwidth-guzzling downloads by internal users often leave home or small office with insufficient bandwidth. TL-WR1043ND supports IP QoS function, allowing optimum utilization of bandwidth and offers bandwidth control over congestion, preventing the bandwidth abuse. In this way, the users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
Easy To Use
Even novice users can easily setup their networking products. The device comes with a CD with an Easy Setup Assistant that leads you through the setup process step-by-step, and even helps with wireless network settings and security configurations.
