安全
| IP地址过滤 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
| 网页(URL)过滤 |
Y |
| 防火墙 |
Y |
| DoS攻击的预防 |
Y |
| 支持虚拟专用网 |
PPTP, L2TP, IPSec |
| 防火墙 |
SPI |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Wi-Fi 频段 |
Single-band (2.4 GHz) |
天线
| 天线数量 |
3 |
| 可拆式天线（S） |
Y |
| 天线接口类型 |
RP-SMA |
| 天线增益水平（最大值） |
5 dBi |
以太网LAN特性
| 以太网LAN接口类型 |
Gigabit Ethernet |
| 以太网的数据传输率 |
100, 1000, 10 Mbit/s |
| 全双工传输 |
Y |
管理功能
| 最小曲线半径 |
Y |
| 网上管理 |
Y |
| 重启按钮 |
Y |
| 支持服务质量（QoS） |
Y |
| 通用即插即用（UPnP） |
Y |
协议
| 动态主机配置协议服务器 |
Y |
| 动态主机配置协议客户 |
Y |
| DMZ支持 |
Y |
联网
| 默认密码功能 |
Y |
| 接收机灵敏度 |
270M: -68dBm@10% PER\n130M: -68dBm@10% PER\n108M: -68dBm@10% PER\n54M: -68dBm@10% PER\n11M: -85dBm@8% PER\n6M: -88dBm@10% PER\n1M: -90dBm@8% PER |
另外
| 开/关切换钮 |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |
| 包括 AC 适配器 |
Y |

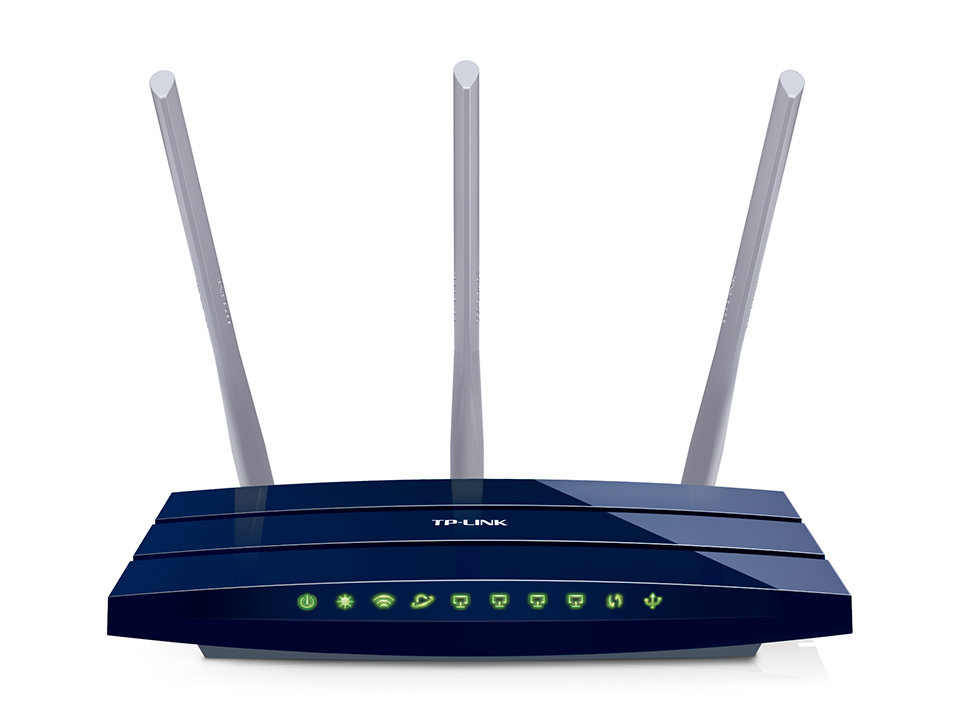

802.11b/g/n, 4x Gigabit Ethernet, 1x USB 2.0, 450Mbps, 2.4GHz, 3x 5dBi
- 450Mbps Wireless speed and Gigabit Ethernet ports are ideal for multiple HD video streaming
- Multi-functional USB 2.0 port - Easily share a printer locally and files & media with networked devices or remotely via FTP server
- Wireless security encryption easily at a push of WPS Button
<b>Wireless Speed Up To 450Mbps 2.4GHz Set To Maximum</b>
With wireless speeds of up to 450Mbps, the maximum speed available on a 2.4GHz single band, you can enjoy HD video streaming and online gaming with an even more fluid experience than 300Mbps and 150Mbps.
<b>Fully extended coverage</b>
<b>3*5dBi antennas</b>
3 external 5dBi antennas combined with higher quality antenna technology provide users with larger wireless coverage and stronger wireless signal intensity from anywhere in your large home or office.
<b>Blazing Wired Speeds</b>
<b>5 Gigabit Ports + 800Mbps Hardware NAT</b>
With 5 built-in gigabit ports and a Hardware NAT function, the wireless router provides powerful data processing capabilities. Its NAT WAN to LAN throughput can achieve up to 800Mbps+ allowing users to unleash the full potential of their networks.
<b>Easy for Sharing</b>
<b>Multi-functional USB Port</b>
Using the TL-WR1043’s multi-functional USB ports, users can share printers, files and media either throughout the network at home with several different computers or even away. Using the device’s ftp server functions so that you never have to part with your files.
