性能
| 波长 |
1310 nm |
| 灵敏度 |
-31 dBmW |
| 发射功率(最小) |
-15 dBmW |
| 最大传输距离 |
20000 m |
| 光纤模式结构 |
Single-mode |
| 发射功率(最大) |
-8 dBmW |
另外
| 数据传输率(最大) |
100 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 连接方式 |
Wired |
100BASE-TX (RJ-45) [100 m/328 ft.], 100BASE-FX 1310nm single mode (SC) [20 km/12.4 mi.]

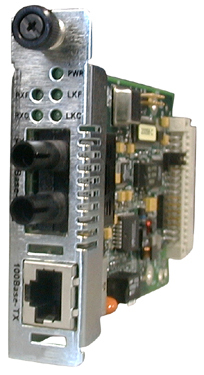

This Fast Ethernet media converter solution provides a fully-managed conversion between 100BASE-TX and 100BASE-FX signals at the Central Office (CO) and Customer Premises.
With the Remotely Managed Fast Ethernet Media Converter, service providers can now monitor and manage the entire optical link from the CO to the Customer Premise Equipment (CPE). They also have the ability to remotely change the bandwidth offered to the customer in increments of 64 KBps and choose the appropriate mode of connection straight from their Network Management Centers.
