其他功能
| MAC 地址表 |
4000 entries |
| 数据包包传输速度 |
14880/148800 pps |
| 光纤类型 |
MMF |
| 接口 |
RJ-45, ST |
| 遵守工业标准 |
IEEE 802.3 |
性能
| 缓冲区大小 |
256 KB |
| 最大传输距离 |
2000 m |
| 波长 |
1300 nm |
联网
| 布线技术 |
10Base-T, 100Base-TX, 100Base-FX |

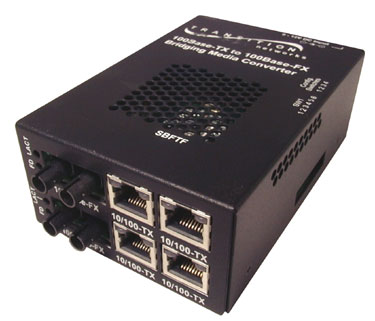

SBFTF1011-140 Stand-Alone Media Converter
The SBFTF101-140 6-port Ethernet/Fast Ethernet bridging media converter allows connection of 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet fiber network.
Features:
- Auto-Negotiation (802.3u) - Allows devices to perform automatic configuration to achieve the best possible mode of operation over a link.
- AutoCross™ - Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
- Half or full-duplex on all ports including fiber
- Far End Fault (FEF) - A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link.
- Each port fully manageable
- Automatic Link Restoration - Transition Networks's converters will automatically re-establish link in all network conditions.
- Source Address Change - When the MAC address of a connected device changes (new device is inserted) the administrator receives the trap with the notification of a change.
- Fiber Redundancy Mode - When failure on primary fiber occurs it is detected by a converter; fiber two (secondary) is activated and becomes the primary link. The original fiber link (1) is put in the disabled state. It becomes secondary until the failure on primary fiber occurs.
