联网
双机热备系统 |
Full |
转换器输入接口 |
1000Base-LX |
性能
可支持的光纤电缆直径 |
9/125 µm |
光纤模式结构 |
Multi-mode |
最大传输距离 |
220 m |
能量控制
外接电源转接器 |
Y |
输入电压 |
5 V |
输入电流 |
1 A |
另外
数据传输率(最大) |
1000 Mbit/s |
连接方式 |
Wired |
以太网路(RJ-45)连接接口数量 |
1 |
1xRJ-45, 1xMini-GBIC, Black

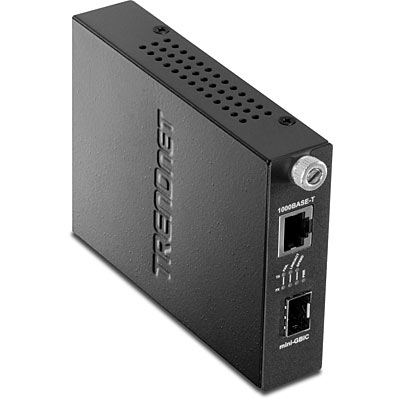

TRENDnet’s 100/1000BASE-T to SFP Media Converter, model TFC-1000MGA, is a reliable Plug-and-Play Fiber-to-Ethernet converter in a compact form factor. This versatile fiber converter supports both Multi-Mode (SX) and Single-Mode (LX) fiber standards for transmission distances of up to 80 kilometers (50 miles).
The Mini-GBIC slot and Gigabit Ethernet port Auto-Negotiate between 100 and 1000Mbps transmission speeds. Diagnostic LEDs on the front of the converter convey device status. Control Auto-Negotiation (Forced/Auto-Negotiation) and Link Loss Return (Enable/Disable) with an internal dip-switch. This sturdy metal housed converter can be installed as a standalone unit and is compatible with TRENDnet’s expandable 16-Bay Fiber Converter Chassis System, model TFC-1600
- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
- 1 x 10/100/1000Base-T RJ-45 port
- 1 x 100Base-FX/1000Base-SX/LX Mini-GBIC slot
- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Status LED indicators for Power, Link/Activity and Fail
- Wall mountable
- Compatible with TRENDnet’s 16-Bay Fiber Converter Chassis System, model TFC-1600 (holds up to 16 TFC series Media Converters)
