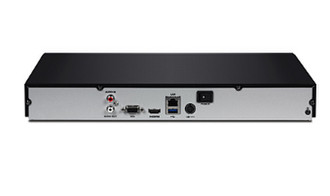

端口 & 界面
| 音频 RCA 输入接口 |
1 |
| 音频 RCA 输出接口 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
1 |
| VGA（D-SUB）输出端口 |
1 |
性能
| 以太网的数据传输率 |
1000 Mbit/s |
| 支持网络协议 |
IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2, HTTP, UPnP, RTSP, RTP, RTCP |
| 视频输入通道 |
8 channels |
存储介质
| 硬盘容量 |
2000 GB |
| 安装的硬盘驱动器的数量 |
1 |
| 支持的硬盘数量 |
1 |
| 最大存储容量 |
6 TB |
| 硬盘接口 |
Serial ATA II |
内容包装
| 手持式遥控器 |
Y |
| CD 手册 |
Y |
| 快速安装向导 |
Y |
另外
| HDMI 输出端口 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
HDMI/VGA, 1920 x 1080 p/60 Hz, 2 x RCA, 8 channel, SATA II, IEEE 802.3/802.3u/802.3x/802.3ab, RJ-45, USB 2.0, USB 3.0, 100 - 240 V, 50 - 60 Hz, 12 V DC, 3.33 A, 10 W, 380 x 270 x 45 mm, 2.7 kg
- 8-channel network video recorder
- Manage up to 8 TRENDnet cameras*
- Concurrent 1080p HD video recording for all channels
- Preinstalled 2 TB HDD provides one week of continuous 1080p video recording***
- Two 3.5” SATA II bays support up to a 12 TB of storage (6 TB max. per bay, additional HDDs sold separately)
- Advanced video playback
- Rack mountable
- ONVIF compliant

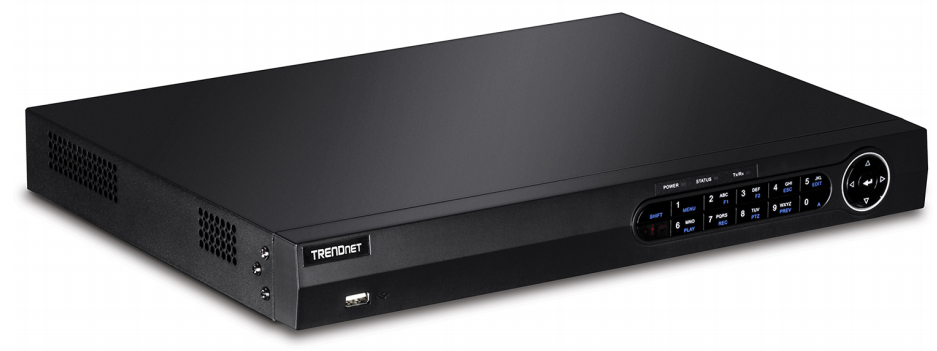

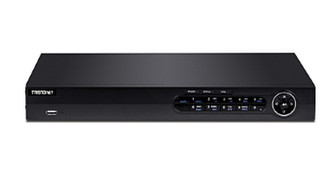

TRENDnet’s 8-channel HD NVR, model TV-NVR2208D2, offers a comprehensive rack mountable camera management solution. This NVR includes a preinstalled 2 TB hard drive and connects up to eight cameras*. Install up to 12 terabytes of storage (additional hard drives sold separately) to record four weeks of continuous video from eight HD cameras**. The TV-NVR2208D2 features advanced video playback and free iOS®/ Android™ apps available.
1080p HD NVR
This 1080p HD NVR includes a preinstalled 2 TB hard drive and supports a total storage capacity of up to 12 TB and manages up to eight network cameras - cameras and display sold separately.
Easy Installation
The NVR auto-recognizes TRENDnet cameras* – simply connect compatible TRENDnet cameras and start recording
surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules and advanced playback options.
