性能
适用环境温度(最大) |
25 °C |
适用环境温度(最小) |
-25 °C |
灯
兼容灯泡类型 |
Fluorescent |
兼容灯泡能效等级 |
A, A+, B, C |
灯泡数目 |
1 |
替换灯泡功率(最大) |
54 W |

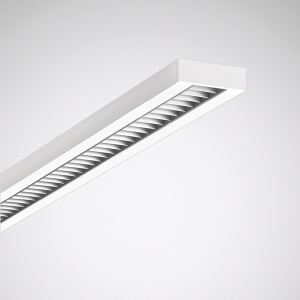

T5 28/54 W, IP20, 3.3 kg
Luminaire type
Surface-mounted luminaire as single luminaire. For 1 fluorescent lamp T5 28/54 W.
Applications
Offices, Sales rooms, Banks, Ticket halls.
Mounting methods
For mounting to ceilings and overhangs indoors.
Optical system
With parabolic specular louvre, semi-specular. With reflection-intensifying coated silver surface, reflection factor > 98%. With asymmetric light intensity distribution. Louvre mounting and self-actuating electrical earthing via sliding contact catches. Louvre can be hinged downwards and unhooked on both sides without tools.
Luminaire body
Luminaire body of sheet steel, powder-coated, Colour white (RAL 9016). Installation dimensions of end cap for end luminaire or single luminaire use is 11 mm per end cap. Please order end caps for individual luminaires or continuous lines separately. Rectangular design with 40 mm wide rim. Luminaire body with integral coupling profiles for precise alignment of continuous lines with non-interrupted louvres. Permissible ambient temperature (ta): -20 °C - +25 °C.
Electrical version
With electronic transformer, switchable.
When the luminaire is connected to a halogen-free power cable, the cable must be protected by a heat shrink tube (TOC 6361200). This enables long-term damage to cable insulation caused by exposure to fluorescent lamp light to be avoided..
