设计
| 防护等级 |
I |
| 安装孔形状 |
Square |
| 适合房型 |
Office, Storage room |
| 形狀 |
Square |
灯
| 发光效率 |
121 lm/W |
| 兼容灯泡类型 |
LED |
| 包括灯泡功率 |
24 W |
| 兼容灯泡能效等级 |
A, A+, A++ |
| 色温 |
4000 K |
| 显色指数（CRI） |
80 |
| 灯泡使用寿命 |
50000 h |
| 光通量 |
2900 lm |
24 W, A++, A+, A, 121 lm/W, 4000 K, IP20

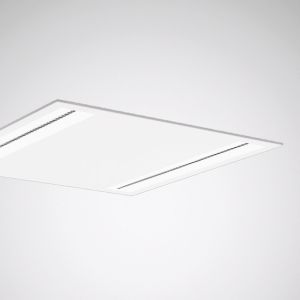

Luminaire type
Recessed LED luminaire with MRX micro reflector and opal PMMA covering.
Applications
For workstations with computer screens. Offices, Corridors, Foyers, Conference rooms, Retail areas, waiting zones.
Mounting methods
Lay-in luminaire for ceilings with exposed grids. System dimension 625 x 625 (M84). Suitable for installing in ceilings with low intermediate heights. The luminaire is also suitable for applications in plasterboard ceilings with an accessory ordered separately. (TOC 6360800 ArimoS CDP ZBB/1). Installation in cut apertures via mounting accessory ArimoS CDP ZBB... requires a ceiling material thickness of 25 mm - 40 mm. Cut-out opening 577 mm x 577 mm, Recess depth ≥ 90 mm.
Optical system
With MRX micro louvre for good glare reduction. Direct distribution. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m² for beam angle above 65° all-round. Direct glare limitation in accordance with UGR < 19.
LED system
Direct distribution LED integrated in MRX micro reflector for high efficiency. Luminaire luminous flux 2900 lm, connected load 24 W, luminous efficiency of luminaire 121 lm/W. Light colour neutral white, colour temperature 4000 K, colour rendering index Ra > 80. Service life L80(tq 25 °C) = 50,000 h.
Luminaire body
Sheet steel luminaire body, white powder-coated. Dimensions (L x W) 622 mm x 622 mm, luminaire height 35 mm.
Electrical connection
Luminaires equipped with Linect® luminaire connection system. External connection via Linect© plug connector or conventional method is possible. Wired ready for connection with 3-pole mains connection to 2.5 mm².
Electrical version
With electronic transformer, switchable. Dimensions operating device (L x W x H) 234 mm x 30 mm x 21 mm.
Accessories
A remover tool (2926500) is required to open the luminaire cover (please order tool separately). Linect© plug connector not included in scope of supply.
