能量控制
| 最大电流 |
15 A |
| 名义输出电压 |
100-127 V |
| 额定输入电压 |
100-127 V |
| 接受频率 |
50/60 Hz |
端口 & 界面
| 交流电(AC)插座数量 |
14 AC outlet(s) |
| 电源插头 |
NEMA 5–15P |

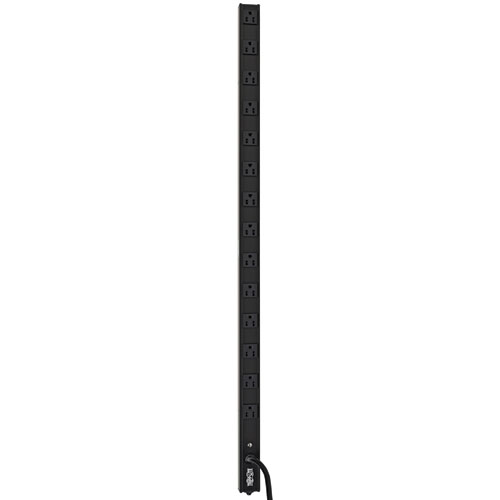

1.44kw Single-Phase Basic PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- 0U 36in / 91.4cm vertical rackmount format PDU installs using no rack spaces
- 14 NEMA 5-15R outlets
- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 15A resettable circuit breaker
- Switch-free design prevents accidental shutoff
- Toolless mounting buttons enable simple installation in compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
