端口 & 界面
| 可支持的电缆类型 |
Cat5e, Cat6 |
| 视频端口数量 |
3 |
| 视频接口类型 |
HDMI |
| DC-IN插口 |
Y |
能量控制
| 接受频率 |
50/60 Hz |
| 输入电压 |
100-240 V |
2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 4K x 2K UHD

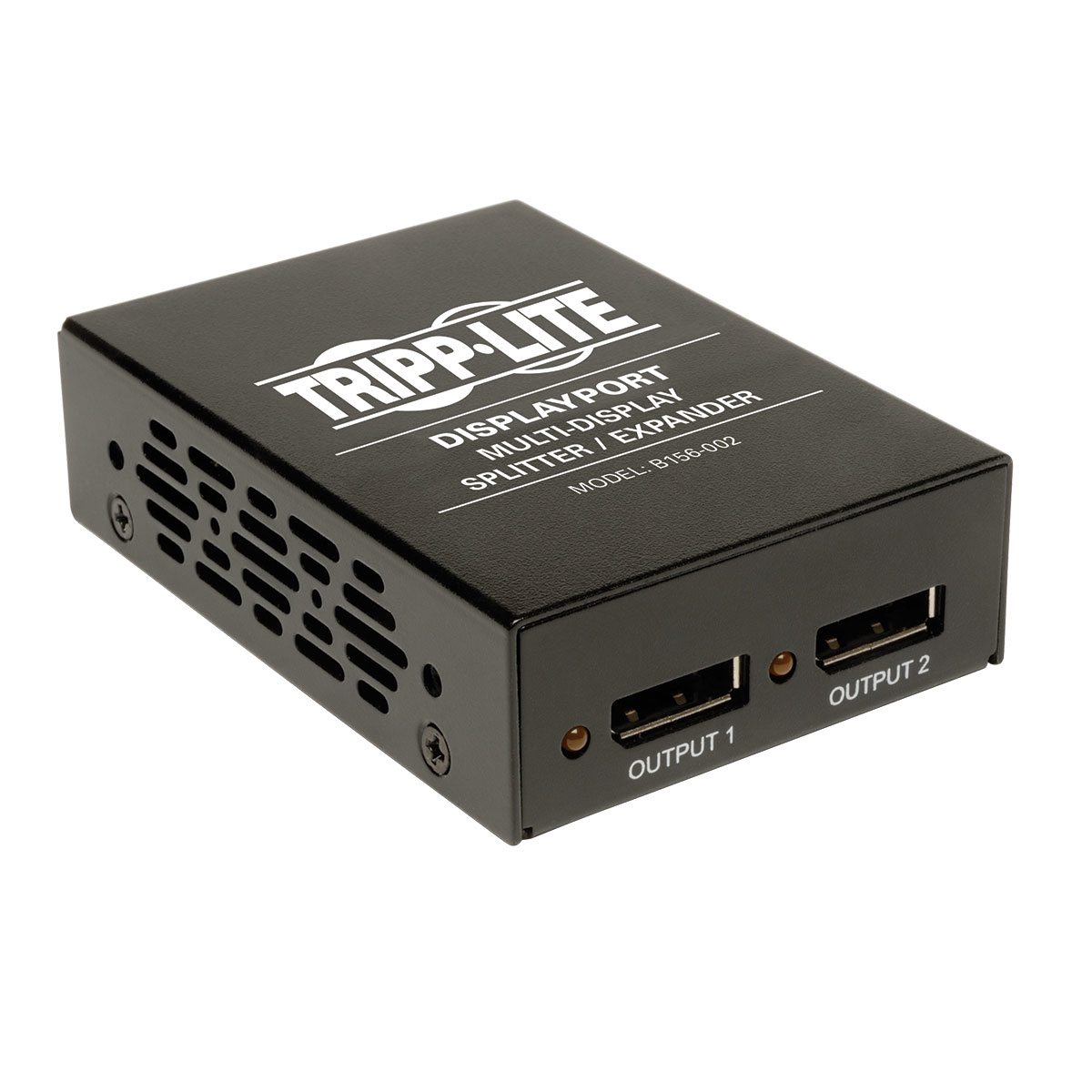

Get everyone’s attention by broadcasting awesome messages in ultra-high definition video! With Tripp Lite's B156-002 2-Port Multi-Display Video Splitter/Expander, you can split or expand a single DisplayPort signal into two separate signals and display them on two DisplayPort monitors using standard DisplayPort cables (Tripp Lite P580-Series or P583-Series). You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002 supports 4Kx2K Ultra-High Definition (UHD) video resolutions up to 3840x2160 (60Hz), 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. It is compliant with DisplayPort v1.2. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included.
- Compliant with DisplayPort 1.2
- Splits or expands a DisplayPort audio/video signal on two DisplayPort monitors
- Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one
- Supports 4K x 2K Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (24 and 30 Hz) - see System Requirements
- Supports up to 48-bit Deep Color (16 bits per channel)
- Splits a DisplayPort video signal to simultaneously display the same signal on two DisplayPort monitors, or expands it across both monitors as in video wall mode
- Displays can be placed up to 7.62 m (25-ft.) away from the splitter/expander; the video source can be up to 4.88 m (16-ft.) away from the splitter/expander (1.83 m (6-ft.) is recommended).
- Supports both 4Kx2K (3840x2160 at 60Hz) UHD video and standard 1080p (1920x1080 at 60Hz) high-definition video
- Supports up to 48-bit Deep Color (16 bits per channel) and video resolutions up to 4K Ultra High Definition (UHD), 3840x2160 (60Hz)
- Complies with HDCP, EDID and DDC
- Compatible with DisplayPort 1.2
- Compatible with Apple Thunderbolt connectors (using P583-Series Mini Displayport to Displayport adapter cable)
- Plug-and-play; no software or drivers required
- Easy to install; connect the DisplayPort video source to the hub’s input port, connect the external power supply, and finally connect the two monitors to the output ports
- Wall-, rack- or pole-mounting; all mounting hardware is included
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
