B020-016-17-IP - 16 port - 1 U - Black

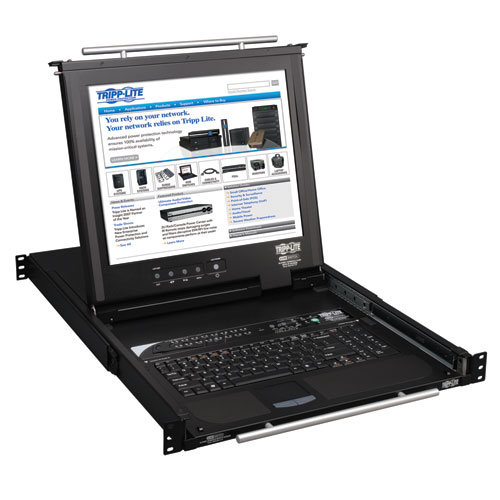

The B020-016-17-IP Console KVM Switch with built-in IP access allows secure access to multiple computers from a single KVM (keyboard, monitor and mouse) console. A single B020-016-17-IP can control up to 16 connected computers. The number of connected computers can be expanded to up to 256 by cascading a second level of B022-U16 KVM switches. It consists of an integrated 17" LCD monitor, keyboard and touch pad in a 1U rackmountable, retractable sliding housing.
The LCD and keyboard/touch pad modules slide independently of each other. To maximize space, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back flush against the rack allowing convenient monitoring of computer activity.
The B020-016-17-IP features IP-based connectivity that allows one local operator and one remote operator to simultaneously monitor and access the computers attached to the console. Because it uses TCP/IP for its communications protocol, the B020-016-17-IP can be accessed from any computer on the LAN, WAN or Internet whether that computer is located down the hall, down the street, or halfway around the world.
For Government purchasers, B020-016-17-IP is Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- 16-port IP Remote Access Console KVM switch.
- Integrated KVM console with 17" LCD monitor, keyboard and touch pad.
- 1024-bit RSA, 256-bit AES, 56-bit DES, 128-bit SSL.
- Dual slide LCD monitor module can slide independently of the keyboard/touch pad module.
- Panel Array Mode.
- Graphical OSD.
- Log Server.
- Control PS/2 or USB computers/servers using P774-Series (PS/2) and P776-Series (USB) KVM Cable kits.
- Dual bus supports one local and one remote simultaneously accessing the KVM Switch.
- Single console controls up to 16 computers - cascade additional B022-U16 KVM Switches to control up to 256 computers.
- Remotely access computers via the LAN, WAN or Internet to control your installation when and where you want.
- Grayscale option to improve transfer speed in low bandwidth situations.
- User-selectable network transfer rate.
- Includes an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for connection of an external console.
- Internet browser access Windows Client and Java Client provided, Java Client works with most operating systems.
- Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense, and Ping.
- Message Board: Instantly communicate with other users.
- UL/cUL.
- High video resolution: up to 1280 x 1024 @ 75Hz (17" LCD monitor); 1600 x 1200 @ 60Hz (remote computer).
- Power Consumption: 120V, 60Hz, 31W; 230V, 50Hz, 39W.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
