联网
| 布线技术 |
10/100/1000BaseT |
| 双机热备系统 |
Full, Half |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 转换器输入接口 |
1000Base-T, 10Base-T |
| 转换器输出接口 |
1000Base-FX |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
性能
| 可支持的光纤电缆直径 |
62.5/125, 50/125 µm |
| 光纤模式结构 |
Multi-mode |
| 最大传输距离 |
2000 m |
| 波长 |
1310 nm |
另外
| 数据传输率(最大) |
1000 Mbit/s |
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |

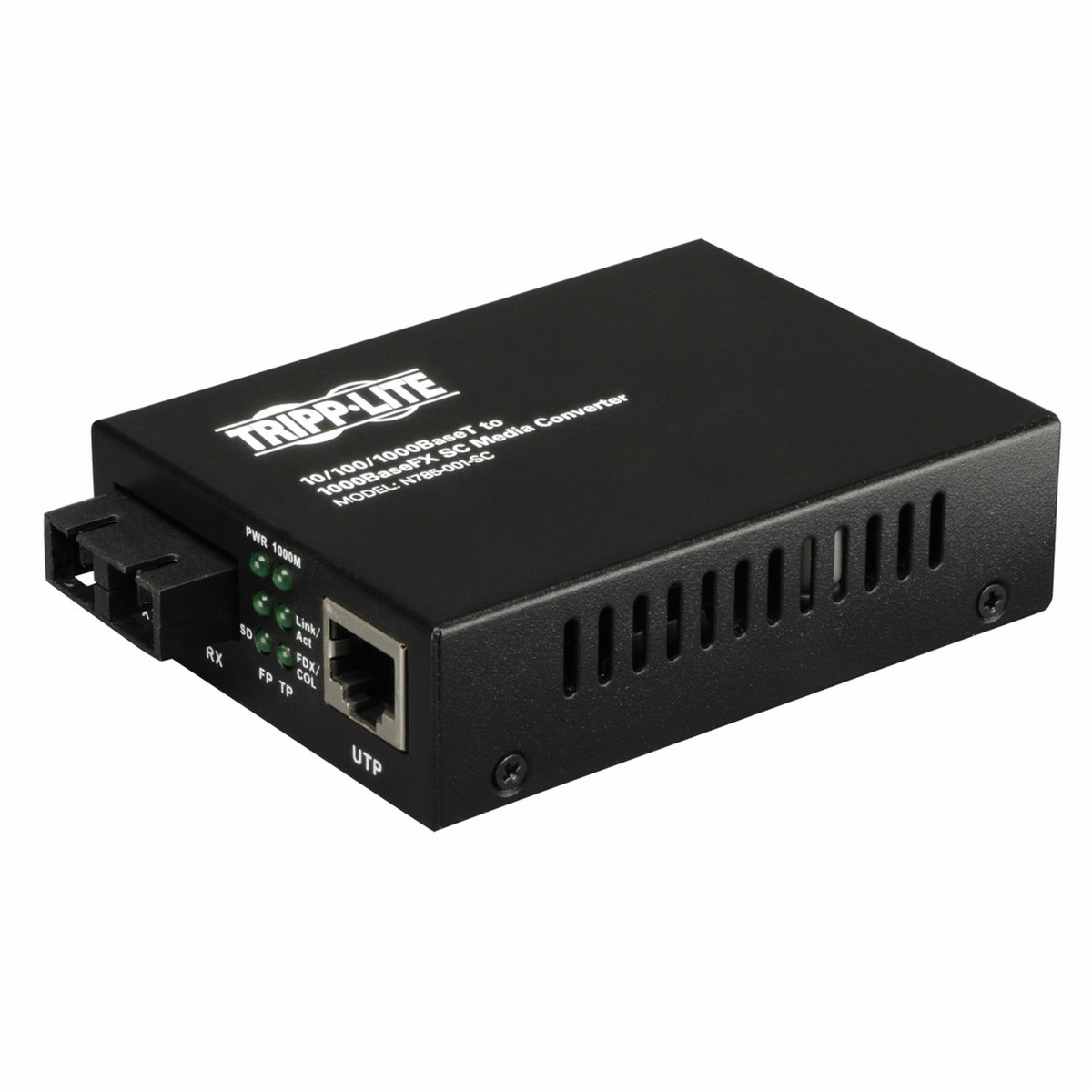

Fiber Optic - 10/100/1000BaseT to 1000BaseFX-SC Gigabit Media Converter
Tripp Lite's N785-001-SC 10/100/1000 Gigabit Media Converter is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. With advanced features such as selectable half or full duplex operation on the fiber port, 1310 nm wavelength, automatic MDI/MDI-X configuration and link fault pass-through, the N785-001-SC supplies superior signal quality and gives you ultimate network control. For extra flexibility, the converter can be powered either by an AC adapter or USB port. The N785-001-SC is compatible with both 62.5/125 and 50/125 multimode fiber cable.
- Connect 10BaseT/100BaseT /1,000BaseT UTP Ethernet to 1000BaseFX Fiber Ethernet
- Auto MDI/MDI-X
- UTP port auto-senses network speed
- Fiber lengths up to 2Km
- 6 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75"L x 2.75"W x 1"H
- Wavelength: 1310nm
- RoHS Compliant
