安装
| 屏幕尺寸最小的 兼容性 |
13 " |
| 屏幕尺寸最大的兼容性 |
27 " |
| 安装接口兼容性（最小） |
75 x 75 mm |
| 安装界面相容性（最大） |
100 x 100 mm |
| 支持的显示器数量 |
2 |
| 最大承重量(最大载重能力) |
9 kg |

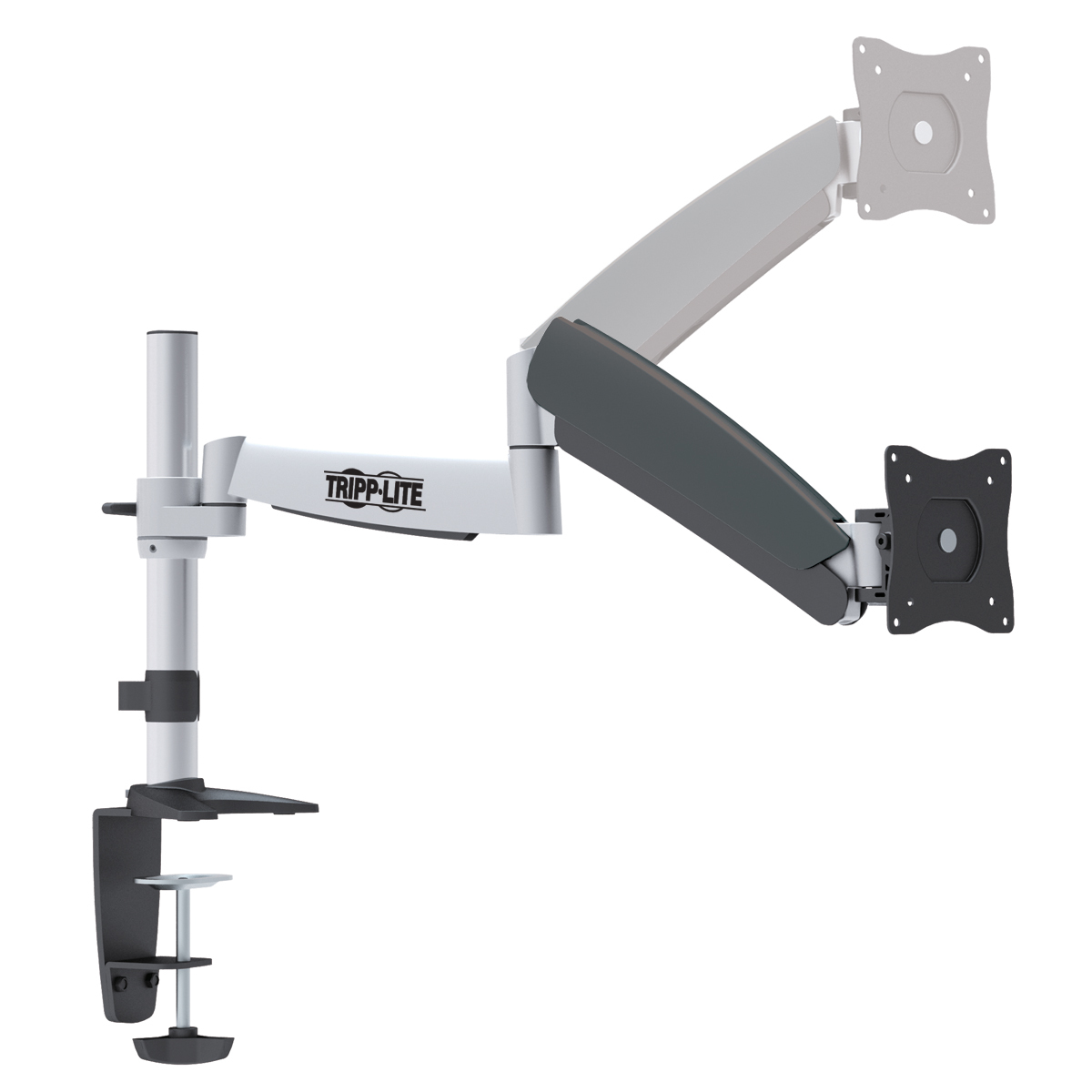

Full Motion Desk Mount for 13" to 27" Monitors
The VESA-compliant DDR1327S Full Motion Desk Mount Clamp attaches to your desk, table or workstation, allowing you to mount a monitor above it and free up valuable workspace. Ideal for home and office, the DDR1327S fits most flat-panel displays from 13 to 27 inches. The swivel arm can be independently adjusted for angle and height to give you maximum flexibility in positioning your display to fit your environment and comfort level. Move the screen closer to you, or push it out of your way when not in use. A 180° swivel and -40° to +90° tilt capability minimizes glare and provides comfortable viewing from multiple angles. A 360° rotation lets you view your monitor in portrait or landscape orientation. Durable clamp attaches to most flat surfaces up to 3.5 inches thick with a firm grip. Swivel arm supports monitors up to 9 kgs (20 lbs.) The durable all-metal frame with soft rubber-feel finish tolerates frequent handling and blends with any décor. Mounting hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm and 100 x 100 mm.
Attaches to Most Desks, Tables and Workstations
● Clamps securely to most flat surfaces from 0.4 in. to 3.5 in.
● Fits most flat-panel displays from 13 to 27 in.
● Swivel arm adjusts independently for angle and height
● Ideal for home and office use
Convenient One-Touch Adjustment
● 180° swivel and -40° to +90° tilt capability provides comfortable viewing
● Full 360° rotation for viewing in portrait or landscape orientation
Durable Metal Construction
● Supports monitors up to 9 kg (20 lb.)
● Soft rubber-feel finish blends with any décor
● Mounting hardware included
● Display cable attaches to mount to reduce clutter
VESA Compliance
● Supports the following VESA mounting hole patterns: 75 x 75 mm and 100 x 100 mm
● Fits most flat-panel displays from 13 to 27 in.
● One-touch adjustment for comfortable viewing
● 5-year warranty
● 180° swivel and -40° to +90° tilt for wide range of motion
● Supports monitors up to 9 kg (20 lb.)
Package Includes
● Adapter bracket assembly
● Pole
● Desk clamp assembly
● (4) M4 screws
● (4) M5 screws
● (4) D5 washers
● Base plate
● Pad
● Hex key, 3 mm
● Hex key, 4 mm
● Hex key, 5 mm
● Hex key, 6 mm
● Owner’s manual
