能量控制
| 功率因数 |
0.7 |
| 输入工作电压（最大值） |
240 V |
| 输入工作电压（最小值） |
220 V |
| 电源输入频率 |
50/60 Hz |
| 能量波动功率 |
570 J |
| 输出功率（瓦特－安培） |
1000 VA |
| 波峰因数 |
3:1 |
| 输出工作电压（最小值） |
220 V |
| 输出工作电压（最大值） |
240 V |
| 输出功率 |
700 W |
其他功能
| 非操作相对湿度(非冷凝) |
0 - 95% |
| 输入连接器类型 |
IEC-C14 |
| 输出连接器 |
4 x IEC-C13 |
| 运行温度范围（T - T） |
32 - 10 °F |
性能
| 发声警报器 |
Y |
| UPS 拓扑 |
Double-conversion (Online) |
| EMI / RFI噪声滤波 |
Y |
电池
| 热插拔电池 |
Y |
| 电池电压 |
36 V |
| 半载典型备用时间 |
14 min |
| 全载典型备用时间 |
5 min |
端口 & 界面
| 电源插头 |
C14 coupler |
| 交流电（AC）插座数量 |
4 AC outlet(s) |

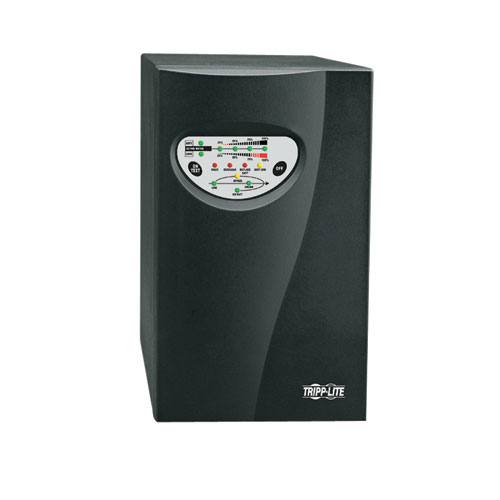

SmartOnline 220-240V 1kVA 700W On-Line Double-Conversion UPS, Tower, C14 inlet, DB9 Serial
Tripp Lite's SmartOnline SUINT1000XL on-line, double-conversion UPS protects critical server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Space-saving upright tower format. Large capacity 1000VA/700W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at selectable 220/230/240V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS types. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 4 C13 outlets. Includes enhanced DB9 serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data.
- True on-line, double conversion UPS provides pure sine wave AC output at all times
- Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges
- Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
- Corrects brownouts and overvoltages from 175-280V at full load. Input voltage range extends to 80-280V at 50% load or less
- 1000VA/700W power capacity with 4 C13 outlets
- IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
- Standard internal battery set provides 14 min. runtime at half load and 5 min. runtime at full load
- DB9 serial port for network interface
- PowerAlert unattended shutdown software and network cable included
