能量控制
| 功率因数 |
1 |
| 输入工作电压（最大值） |
415 V |
| 输入工作电压（最小值） |
220 V |
| 效率 |
99% |
| 最大电流 |
303 A |
| THD输出电压 |
4% |
| 电源输入频率 |
50/60 Hz |
| 能量波动功率 |
2496 J |
| THD输入电流 |
3% |
| 输出功率（瓦特－安培） |
210000 VA |
| 波峰因数 |
3:1 |
| 输出工作电压（最小值） |
220 V |
| 输出工作电压（最大值） |
415 V |
| 输入功率因数 |
0.99 |
| 输出电压调节 |
1% |
| 输出频率调节 |
±0.05 Hz |
| 输出功率 |
210000 W |
性能
| 波形 |
Sine |
| 发声警报器 |
Y |
| UPS 拓扑 |
Double-conversion (Online) |
| EMI / RFI噪声滤波 |
Y |
| 冷却方式 |
Active |
| 电源保护功能 |
Short circuit |
| 输入相位数 |
3 |
| 输出相位数 |
3 |
| 发声警报模式 |
Alarm when on battery, Fault, Low battery alarm |

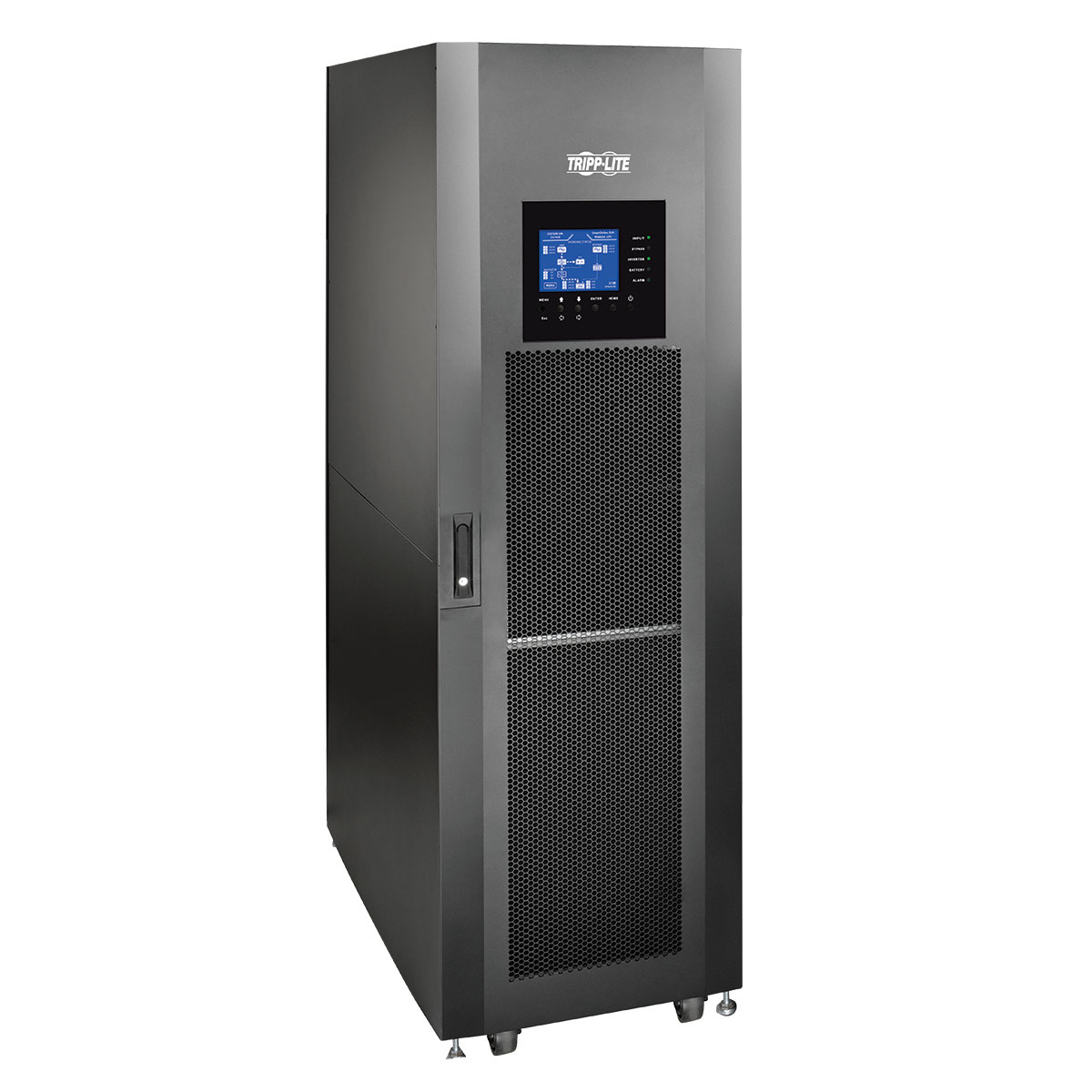

SmartOnline SVX Series 210kVA Modular, Scalable 3-Phase, On-line Double-Conversion 400/230V 50/60Hz UPS System
Tripp Lite's SVX210KL7P 210kVA / 210kW SmartOnline large-chassis UPS includes installed Input, Bypass and Output breakers, a Static Transfer Switch (STS) and 7 included 30kVA SVX30PM power modules. The system includes space for 1 additional user installable SVX30PM power module for N+1 fault-tolerance.
Featuring modular, scalable design with high efficiency voltage and frequency independent / VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online-mode and over 99% efficient in optional economy-mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is supported anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. UPS batteries are not included, External ±240VDC battery cabinets sold separate.
● Tripp Lite's SVX210KL7P 210kVA / 210kW SmartOnline UPS offers network-grade power protection in a highly-configurable large-chassis modular, scalable form factor
● Supports 220/380, 230/400 or 240/415V AC, 3-Phase Wye 4-Wire plus Earth Hardwire input and output wiring
● Tested to CE for worldwide applications
● Open slot for 1 additional SVX30PM 30kW power module enables 210kVA capacity with enhanced N+1 reliability
● Pre-installed WEBCARDLX network interface
● Serial port enables unattended shutdown and UPS monitoring ability
● Modular configuration with hot-swappable power modules enables easy and fast maintenance with zero downtime
● Wide input voltage operating range enables full continuous online operation during brownouts as low as 120V (Ph-N) and overvoltages up to 276 (Ph-N)
● Narrow output voltage operating range regulates output voltage within 1% of the selected 220/230/240 nominal output voltage in online, double-conversion mode
● Over 95% efficient in online, double-conversion mode and over 99% efficient in optional economy-mode enables reduced operating and cooling costs
● Less than 3% input Total Harmonic Distortion (THDi) prevents the need to oversize generator systems relative to UPS capacity
● Dual hardwire input design enables operation from one or two input power sources
● N+1 fault tolerance is supported anytime there is an “extra” SVX30PM 30kW power module installed beyond the minimum required quantity (for example, this UPS provides N+1 fault-tolerance when loaded to 180kVA or less; Loads of 180-210kVA are fully supported, but without N+1 fault tolerance)
● Front panel combination LCD/LED display offers full UPS condition and status reporting plus additional configuration options
● 210kVA / 210kW modular, scalable, 3-phase, large-chassis tower UPS
● Supports 3 phase 220/380, 230/400 or 240/415V AC, 50/60Hz, Wye
● Scalable capacity up to 210kVA with N+1 redundancy
● High efficiency on-line UPS with DSP/IGBT technology and 1% output voltage regulation
● Economy mode option further reduces operating and cooling costs
● Pre-installed WEBCARDLX network interface
● Tested to CE for worldwide applications
● Batteries not included, External battery cabinets sold separate
Package Includes
● SVX210KL7P UPS System
● Instruction manual
● Warranty information
