能量控制
| 功率因数 |
0.6 |
| 输入工作电压（最大值） |
230 V |
| 输入工作电压（最小值） |
83 V |
| 效率 |
94% |
| 最大电流 |
6 A |
| 电源输入频率 |
50/60 Hz |
| 能量波动功率 |
570 J |
| 输出功率（瓦特－安培） |
700 VA |
| 输出工作电压（最小值） |
120 V |
| 输出电压调节 |
-21, +8% |
| 输出功率 |
450 W |
性能
| 波形 |
Sine |
| 发声警报器 |
Y |
| UPS 拓扑 |
Line-Interactive |
| EMI / RFI噪声滤波 |
Y |
| 冷却方式 |
Active |
| 电源保护功能 |
Over voltage, Under voltage |
| 输入相位数 |
1 |
| 自动电压调节器（AVR） |
Y |
端口 & 界面
| 调制解调器 (RJ-11)接口 |
1 |
| 电源插头 |
NEMA 5-15P |
| 交流电（AC）插座数量 |
6 AC outlet(s) |
电池
| 热插拔电池 |
Y |
| 电池充电时间 |
4 h |
| 半载典型备用时间 |
54.5 min |
| 全载典型备用时间 |
22.2 min |
| 替换电池盒 |
RBC54 |
| 冷启动 |
Y |

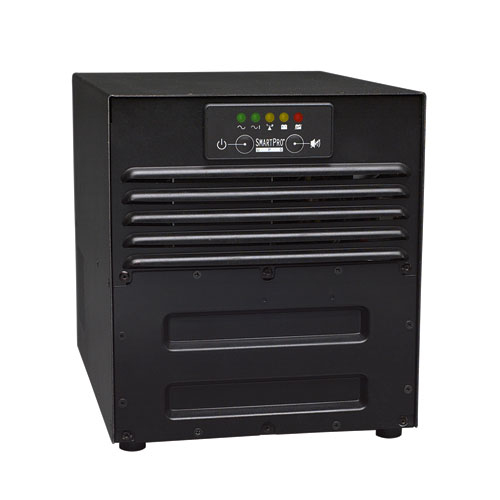

SmartPro 120V 700VA 450W Line-Interactive Sine Wave UPS, Dual Voltage, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial
Tripp Lite's dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures. 700VA/450W power handling capability supports a variety of networking, telecom and other applications, including multiple network workstations. Includes 6 UPS-supported outlets. Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with PowerAlert UPS monitoring and unattended shutdown software available via free download. Includes complete USB and serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.
- Tripp Lite's dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage
- Includes detachable input cord with NEMA 5-15P input plug
- Built-in C14 inlet supports a variety of user-supplied international high- and low-voltage input cables
- Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges
- Large internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures
- 700VA/450W power handling capability supports a variety of networking, telecom and various other applications types, including multiple network workstations
- Includes 6 UPS-supported outlets
- Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports
- Works with PowerAlert UPS monitoring and unattended shutdown software, available via free download
- Includes complete USB and serial cabling
- Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level
- Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
