能量控制
| 功率因数 |
0.6 |
| 效率 |
94% |
| 最大电流 |
10 A |
| 电源输入频率 |
50/60 Hz |
| 能量波动功率 |
480 J |
| 输出功率（瓦特－安培） |
1500 VA |
| 输出工作电压（最小值） |
220 V |
| 输出工作电压（最大值） |
240 V |
| 输出电压调节 |
-15, +8% |
| 输出功率 |
940 W |
端口 & 界面
| 串口数量 |
2 |
| 电源插头 |
C14 coupler |
| 交流电（AC）插座数量 |
6 AC outlet(s) |
性能
| 波形 |
Sine |
| 发声警报器 |
Y |
| UPS 拓扑 |
Line-Interactive |
| EMI / RFI噪声滤波 |
Y |
| 电源保护功能 |
Over voltage, Under voltage |
| 输入相位数 |
1 |
| 自动电压调节器（AVR） |
Y |
电池
| 热插拔电池 |
Y |
| 电池充电时间 |
4 h |
| 半载典型备用时间 |
20 min |
| 全载典型备用时间 |
7 min |
| 替换电池盒 |
RBC53 |
| 冷启动 |
Y |

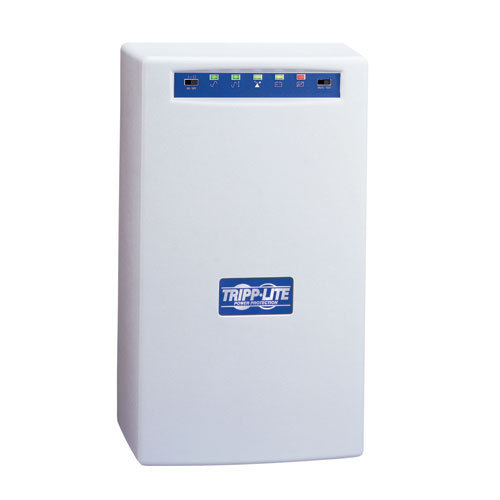

SmartPro 230V 1.5kVA 940W Line-Interactive UPS, Tower, DB9 Serial
Tripp Lite's SMARTINT1500 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. 1500VA/940 watt power handling capability supports a variety of networking, telecom and various other application types, including the support of multiple network workstations. Includes a total of 6 IEC320-C13 outlets. Supports remote monitoring of UPS and site power conditions via built-in DB9 serial and DB9 contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with optional UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower.
- 1500VA/940 watt power handling capability supports a variety of networking, telecom and various other application types
- Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime
- Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
- Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 230V nominal output over an input voltage range of 165-277V
- Includes 1 DB9 serial and 1 DB9 contact closure monitoring port for remote monitoring of UPS status and site power conditions
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity
- PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
- Includes 6 UPS-supported outlets
- Notification of system status via 5 LEDs and multi-function audible alarms
