其他功能
输入连接器类型 |
NEMA 5-15P-HG |
输出连接器 |
4 NEMA 5-15R-HG |
运行温度范围(T - T) |
32 - 104 °F |
额定输入电压 |
120 V |
名义输出电压 |
120 V |
能量控制
电源输入频率 |
60 Hz |
能量波动功率 |
480 J |
输出功率(瓦特-安培) |
1000 VA |
输出功率 |
750 W |
电池
电池充电时间 |
2 h |
半载典型备用时间 |
28 min |
全载典型备用时间 |
10 min |

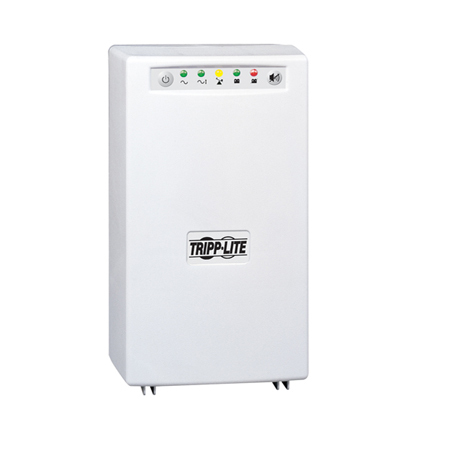

SmartPro XL Medical Grade UPS System - Intelligent, line-interactive power management system
Tripp Lite's SMART 1200XLHG offers medical-grade UPS protection with built-in line-interactive voltage regulation, expandable battery runtime and intelligent monitoring with unattended shutdown capability. UL 60601-1 listed as medical electrical equipment. Built-in isolation transformer with Faraday shield offers full line isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Includes high quality hospital-grade plug and outlets. Resistant to electrostatic discharge. 1000VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. External battery connector allows configuration for up to several hours of runtime during power failures by adding one or more external battery packs (BP36V15-2U limit 1 or BP36V42-3U multi-pack compatible). Line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes diagnostic LEDs and 2 built-in communications ports (1 USB, 1 DB9) that work with included PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.
