技术细节
带宽 |
3.4 Gbit/s |
最大刷新率 |
60 Hz |
支持安全算法 |
128-bit AES |
即插即用 |
Y |
最大分辨率 |
1920 x 1080 pixels |
HDCP |
Y |
RoHS符合性 |
Y |
最大传输距离 |
50 m |
支持图形分辨率 |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
频率 |
5000 MHz |
支持的视频模式 |
480i, 480p, 720p, 1080i, 1080p |
数量 |
2 |
类型 |
AV transmitter & receiver |
连接器1 |
HDMI |
环境条件
储存温度范围 (T-T) |
-20 - 60 °C |
运行湿度范围(H-H) |
20 - 90% |
能量控制
交流电(AC)输入电压 |
100-240 V |
交流电(AC)输入频率 |
50/60 Hz |
Operating voltage (receiver) |
5 V |
输入电流 |
0.6 A |
输出电流 |
3 A |
另外
产品色彩 |
Black |
颜色深度 |
24 bit |
以太网连接器 |
Y |
运行温度范围(T - T) |
0 - 40 °C |

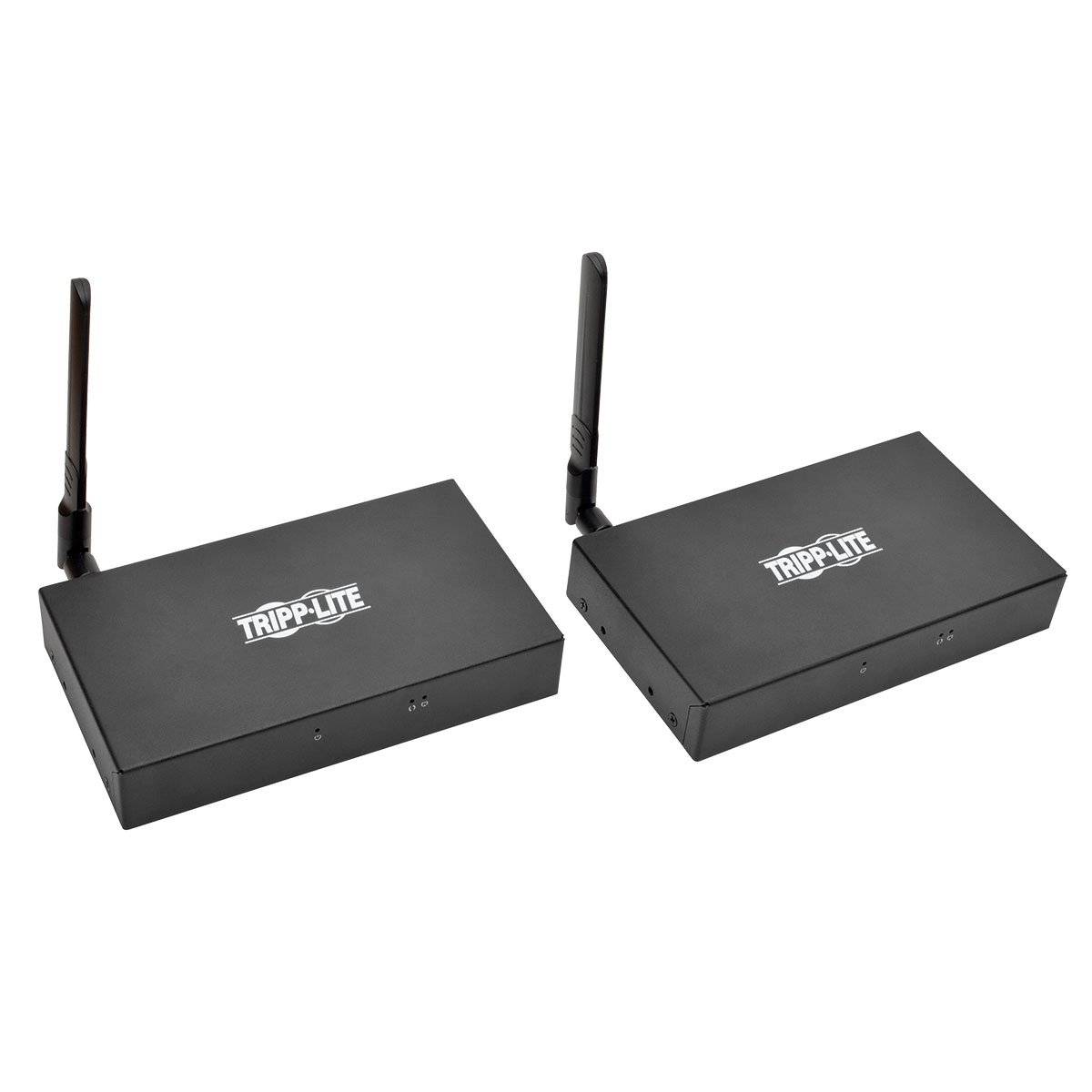

Wireless HDMI Extender 1080p with IR Control, 50 m (165 ft.)
The B126-1A1-WHD1 Wireless HDMI Extender 1080p is an all-in-one wireless solution for extending an HDMI audio/video signal up to 50 meters (165 feet). No costly, bulky cabling infrastructure is needed, making the extender kit ideal for home theaters, office workstations, digital signage and trade show presentations where connecting long video cables would be a burden.
Merely connect HDMI cables (such as Tripp Lite’s P568-Series) and the included IR cables to the transmitter and receiver units, then connect the included external power supplies to both units and a compatible AC power source. IR control functionality lets you access the HDMI source device remotely, meaning you can stand near the display device 50 meters away and activate play, pause, fast forward and other functions on the source’s remote.
The B126-1A1-WHD1 supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It’s compatible with HDMI 1.3 and HDCP 1.2, and supports 24-bit Deep Color (8 bits per channel) and stereo audio, as well as 300 MHz/3.4 Gbps per channel bandwidth (10.2 Gbps total). AES 128 encryption protects your wireless transmissions. LEDs indicate the units are receiving power, transmitting data and connected to a wireless signal.
With no busy cabling infrastructure to clutter your application, you’re free to move your source and display devices where needed. The plug-and-play B126-1A1-WHD1 needs no additional software or drivers to operate. International plug adapters for North America, Europe, the United Kingdom and Australia are included with the power supplies.
Wirelessly Extends an HDMI Audio/Video Signal Up to 50 m (165 ft.)
● Easy no-fuss, no-mess setup with no costly cabling infrastructure
● Ideal for homes, offices, digital signage applications, trade shows and anywhere else where connecting long video cables is impractical
Enhanced Technical Features
● Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
● Extends IR control signals that control an HDMI source from the remote display
● Compatible with HDMI 1.3 and HDCP 1.2
● Supports 24-bit Deep Color (8 bits per channel) and stereo audio
● Supports 300 MHz/3.4 Gbps per channel bandwidth (10.2 Gbps total)
● AES 128 encryption protects transmissions
● Uses a 5GHz wireless frequency
● LEDs indicate power, data transmission and connection status
Plug-and-Play Functionality
● No software or drivers required
● Mounting hardware included for installing transmitter and receiver units in desired location
● Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
● IR control for accessing HDMI source device remotely
● Compatible with HDMI 1.3 and HDCP 1.2
● Supports 24-bit Deep Color and stereo audio
● Easy no-fuss setup with no cabling infrastructure
Package Includes
● Transmitter unit
● Receiver unit
● IR-In cable
● IR-Out cable
● (2) External power supplies (Input: 100–240V, 50/60 Hz, 0.6A; Output: 5V 3A)
● (2) Sets of international plug adapters (North America, Europe, U.K., Australia)
● Mounting hardware
● Owner’s manual
