过滤
| 过滤器清洁指标 |
Y |
| 洗碗机防爆过滤器 |
Y |
| 可移动过滤器 |
Y |
| 可水洗滤网 |
Y |
性能
| 噪音水平 |
50 dB |
| 压力（帕Pa） |
314 |
| 密集速度 |
Y |
| 最大功率提取 |
603 m³/h |
| 流体动力效率等级 |
D |
| 照明效率等级 |
F |
| 油脂分离效率等级 |
D |
| 选取类型 |
Ducted |
| 噪音水平（低速） |
50 dB |
| 噪音水平（高速） |
65 dB |
| 速度调节设置 |
3 |
能量控制
| 灯泡功率 |
20 W |
| 连接负荷 |
290 W |
| 全年能源消耗 |
141 kWh |
设计
| 排气管位置 |
Side |
| 排气连接直径 |
150 mm |
| 照度 |
200 lx |
| 含电机 |
Y |
| 内置显示器 |
N |
| 类型 |
Wall-mounted cooker hood |
| 灯泡数量 |
2 lamp(s) |
| 灯泡类型 |
Halogen |
| 控制类型 |
Touch |
重量和尺寸
| 高度（最大） |
1160 mm |
| 高度（最小） |
730 mm |

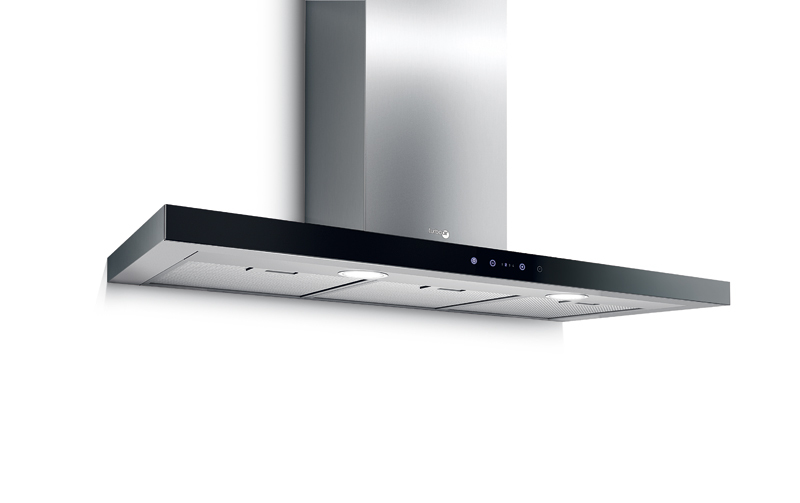

90 cm, 603 m3/h, 290 W, 65 dBA, 2 x 20 W Halogen, Ø 150 mm, Brushed stainless steel/Black tempered glass
Washable grease filter
The grease filters represent the first filtration grid for cooking vapours and grease and therefore must be cleaned frequently. The convenient handles on the filters make them easy to remove. The filters can then be washed by hand or in the dishwasher.
High performance motor
Motorisation providing high performance airflow; recommended for large kitchens or especially intense cooking activity.
Filter change indicator
The indicator provides a visual signal when it is the moment to replace or wash the filters, so that the product is always working at its best.
User-friendly electronic control
Clear interface graphics are fundamental in order to indicate all the possible functions of the cooker hood. The use of electronic technology makes these controls straightforward and user friendly.
Large aspiration surface
The grease filter with a larger surface area offers a greater amount of airflow, guaranteeing maximum capacity of fume capture.
