内存参数
| 可支持内存时钟速度 |
266, 333, 400 MHz |
| 错误更正代码 |
Y |
| 支持的DIMM大小 |
4GB |
| 最大内部存储 |
32 GB |
| DIMM插槽数量 |
8 |
| 支持的内存类型 |
DDR-SDRAM |
| 内存电压 |
2.5 V |
背板输出端口
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI-X 插槽 |
4 |
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
2 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| 并行ATA连接器 |
2 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| SATA II连接器数量 |
4 |
| 并行接口 |
Y |
| CPU风扇接口 |
Y |
| 串行端口接头连接器 |
1 |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
Phoenix |
| BIOS内存大小 |
8 MB |
| ACPI的版本 |
2.0 |
设计
| 主板元件 |
Extended ATX |
| 组件应用 |
Server |
处理器
| 可支持处理器数量 |
2 |
| 处理器生产厂商 |
AMD |
| 可支持的处理器的核心数量 |
2 |
联网
| 以太网接口类型 |
Fast Ethernet, Gigabit Ethernet |
| 无线局域网连接 |
N |
存储控制器
| RAID支持 |
Y |
| 硬盘接口 |
Parallel ATA, Serial ATA II |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
Dual µPGA 940-pin ZIF sockets, 8 x DDR 400/333/266Hz max. 32GB, 2 x Ethernet, 4 x SATA, 2 x PATA, 2 x PCI-Express, 4 x PCI-X, 1 x PCI

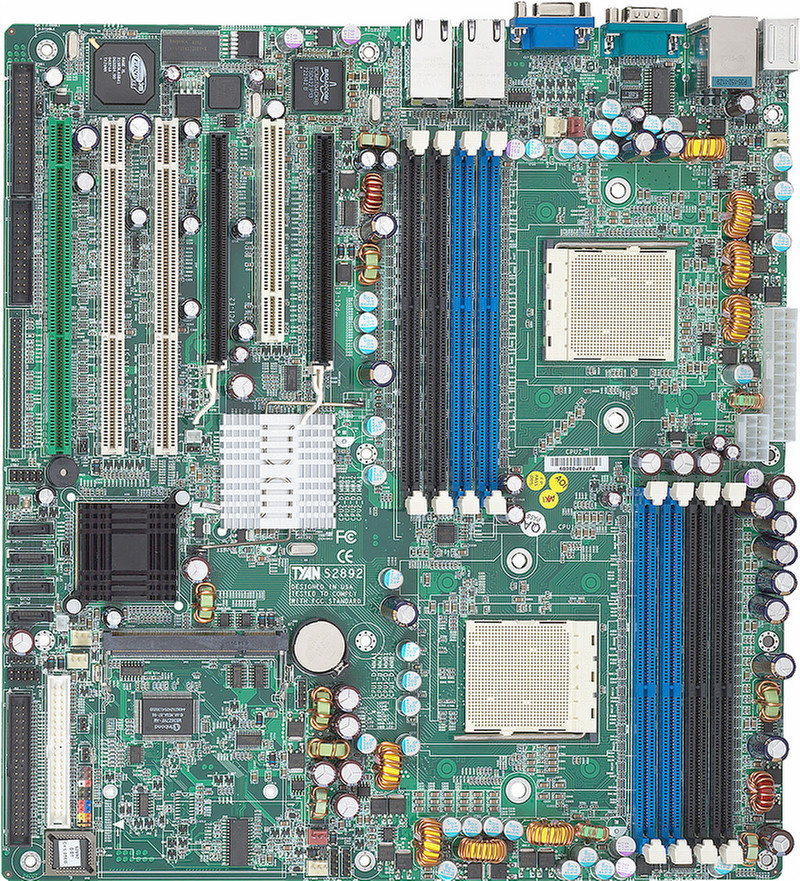

Server performance and 64-bit power come together in the form of Tyan's Thunder K8SE (S2892), a dual AMD Opteron™ processor motherboard for intensive computing applications. Using the capabilities of the highly-scalable AMD64 processor design coupled with NVIDIA's nForce Pro core-logic, and an industry-leading Direct Connect Architecture, the Thunder K8SE delivers features such as dual Gigabit Ethernet and single 10/100 LAN ports, dual PCI Express x16 (one x16 and one x4 signal), and three PCI-X slots, support for up to eight (8) Registered DDR400/333 memory modules, integrated server video, built-in Serial ATA-II NVIDIA RAID, TARO™ storage add-on card support, and remote management option all provide customers with the ability to do more and reach higher potentials in their server applications.
