能量控制
| 额定功率 |
1000 W |
| 电流 |
2250 mA |
| 输出电压（最大） |
48 V |
| 输出电压(最小) |
24 V |
1000W Solar, 48V 180Ah Batt, 24 or 48V 2.5A Output
The RemotePro 200W continuous outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. With its 48VDC 180Ah deep cycle battery array it provides multiple day backup power.
The sturdy outdoor enclosure is a sealed aluminum enclosure specifically designed for battery storage. It is vented and has two lockable latches for security. The enclosures are designed to be mounted on a level platform or slab. There are multiple cable glands included for up to eight different cables. There is a lock feature on the back of the enclosure so it can be easily chained to the solar mount pole for security. The enclosure includes mounting features inside to mount DIN Rail (included) or a metal plate for mounting of customer electronics.

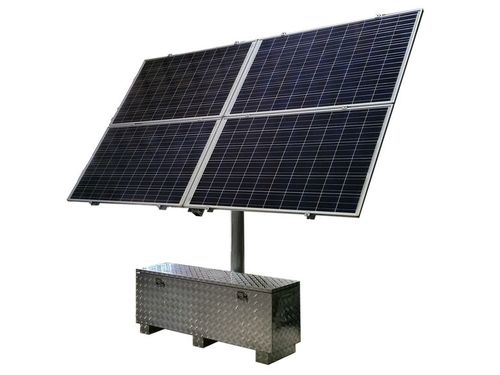

The high quality solar modules have a 25 year power output guarantee. The solar array is available in 500W using 2x 250W panels and 1 kW array using 4x 250W modules. Solar panels feature sturdy anodized aluminum frames and special low iron glass. They are designed to withstand hail storms and heavy accumulations of snow and ice.
The fully grounded solar mount is galvanized steel and anodized aluminum for long life. It is designed to be able to hold two or four 40”x66” (1016 x 1676mm) solar panels. Because of its single pole design it can be installed more readily on rough terrain by using a poured cement foundation. The mount has the capability to easily tilt the mounted panels from 10deg to 65deg so that the mount can be used virtually anywhere and can be adjusted to optimize for winter and summer sun, if desired.
The advanced MPPT battery charge controller handles all aspects of charge and discharge of batteries to protect batteries against over-charging or over-discharging and ensure optimum battery life. The charge controller includes a 7 Port Gigabit PoE switch with switchable 48VDC or 24VDC Passive PoE output. The integrated management system allows for power cycling PoE ports and secondary voltage output ports. Information such as battery levels, current levels, temperature are readily available via the controller web interface.
Batteries are gel type which provides the best available deep discharge and temperature performance. The 48VDC battery array provides 180Ah of reserve power. For a typical use application with 100W load, the batteries should provide at least 2 days autonomy. In normal use the batteries should provide in excess of 5 years life.
RemotePro 200W Systems are Made in USA.
