环境条件
| 运行温度范围（T - T） |
-40 - 176 °F |
产品特点
| 液晶显示器指示灯 |
LAN, Power, Signal strength |
| 内置存储器 |
128 MB |
无线局域网的特点
| 调制 |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| 频段 |
2.412 - 2.472, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
另外
| 数据传输率（最大） |
450 Mbit/s |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
5 Ghz, 450 Mbps, 19 dBi, 10/100/1000 Ethernet, 128 MB DDR2, 8 MB Flash, 1.5:1 VSWR, 189 x 189 x 125 mm

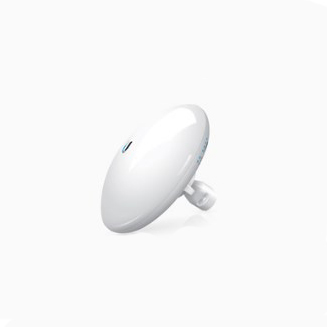

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam® AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation
The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
