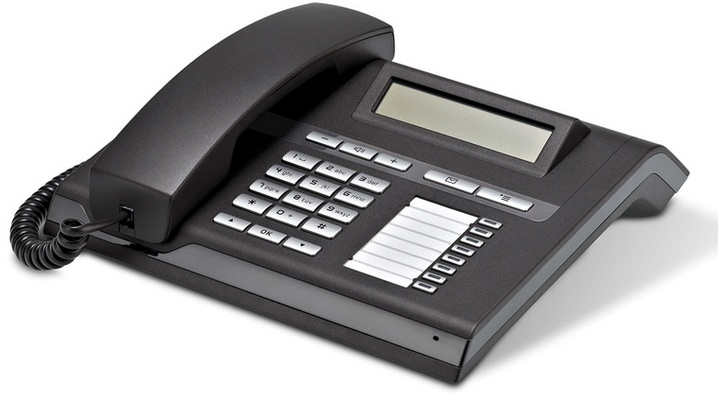

OpenStage 15, G.711, G.729AB, G.722, 2x LAN, PoE, lava
The phone OpenStage 15 is part of the OpenStage phone family. It can be used with SIP or HFA software.
Standards
- Supported Codecs:
- G.711
- G.729AB
- G.722 Wideband (7kHz)
- Standard based SIP support according to RFC 3261 (with SIP software)
- Full-duplex hands-free talking with high quality housing microphone and loudspeaker
- Computer Telephony Integration (CTI for HFA), Third party call control (for SIP)
Applications, Administration
- Remote administration:
- Web-based management
- HiPath Deployment Service
Connections
- 2 ports 10/100Base-T built-in Ethernet switch
- Power over Ethernet (PoE) according to IEEE 802.3af or external power supply (EU, US and UK power adapters)
- Sidecar module support for OpenStage Key Module 15
Housing, Control elements
- 3 navigation keys
- 8 free programmable keys (with paper labels)
- 3 fixed function keys for speaker, messages and menu with red LEDs
- Volume keys (Loudspeaker/+/-)
- Keypad with 12 keys
- not tiltable LCD 2 line display
- Various housing colors (ice blue, lava)
- Wall mountable
