照相机
图像传感器尺寸 |
1/2.8 " |
遥控接口 |
IR wireless |
光圈范围 |
1.8 - 3.4 |
最低照明 |
100 lx |
焦距调整 |
Auto/Manual |
传感器类型 |
CMOS |
Optical zoom (super-wide mode) |
11 x |
Optical zoom (normal mode) |
10 x |
Tele end viewing angle (super-wide mode) |
7.6 ° |
Wide end viewing angle (super-wide mode) |
74 ° |
Tele end viewing angle (normal mode) |
7.6 ° |
Wide end viewing angle (normal mode) |
67 ° |
Focal length range (f-f) (normal mode) |
3.8 - 38 mm |
Closest focusing distance (tele) |
1 m |
Closest focusing distance (wide) |
0.01 m |
Lens modes |
Normal lens mode, Super-wide lens mode |
麦克风
麦克风频率 |
100 - 12000 Hz |
话筒静音 |
Y |
麦克风灵敏度 |
90 dB |
麦克风数量 |
3 |
麦克风总谐波失真(THD) |
0.02% |
Maximum input level |
115 dBu |
Microphone colour |
White |
音频
音频输出阻抗 |
50 Ω |
扬声器电源 |
20 W |
降噪设备 |
Y |
频率范围 |
20 - 20000 Hz |
回声消除 |
Y |
自动增益控制 |
Y |
THD输出电压 |
0.02% |
视频
HD 类型 |
Full HD |
视频编解码器 |
H.264 |
Maximum frame rate |
60 fps |
像素 |
2.14 MP |
联网
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
端口 & 界面
以太网供电(PoE+)端口数量 |
1 |
Line-out |
Y |
USB 3.0 Type-B ports quantity |
1 |
重量和尺寸
麦克风重量 |
51 g |
Dimension, microphone |
63.5 x 63.5 x 63.5 mm |
摄像头尺寸 (宽 x 深 x 高) |
155 x 145 x 163 mm |
技术细节
公共网络访问速度 |
90 °/sec |
倾斜速度 |
90 °/sec |
公共网络访问范围 |
-165 - 165 ° |
信号-噪声比(信噪比) |
50 dB |
倾角 |
-30 - 90 ° |
另外
背光补偿 |
Y |
以太网连接器 |
Y |
产品尺寸 |
184 x 171 x 92 mm |
以太网路(RJ-45)连接接口数量 |
2 |
1/2.8 Exmor CMOS, 2.14MP, 1080p, 10x, 50 dB, PoE+, RJ-45, 20Hz - 20KHz, 50 ohm, International, ConferenceSHOT Speaker, 2 x EasyMIC Ceiling MicPOD

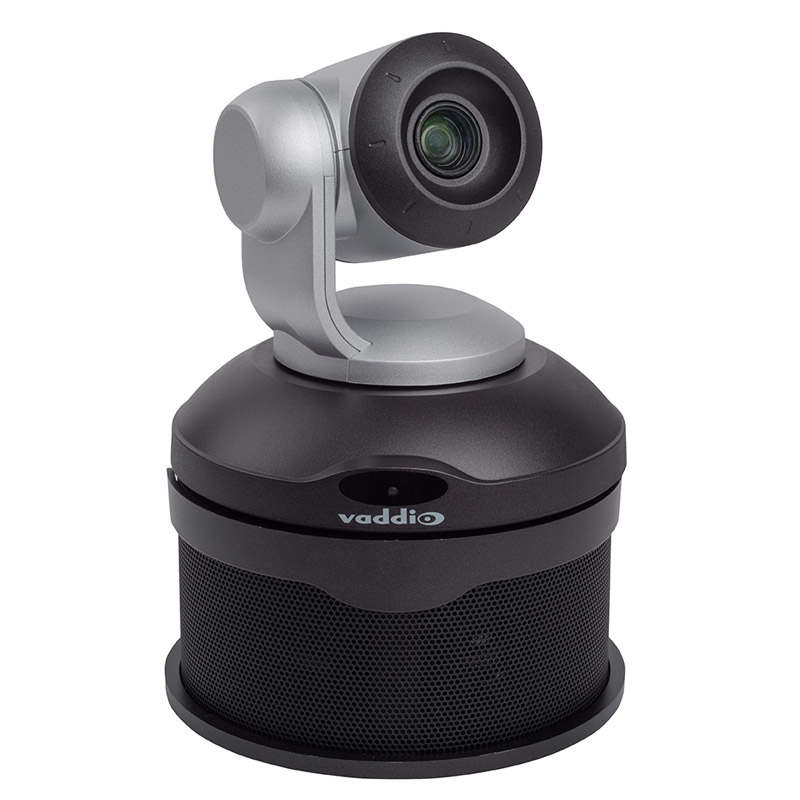

ConferenceSHOT AV Bundle – Integrator 2
Ideal for medium sized videoconferencing rooms, the ConferenceSHOT AV Integrator 2 Bundle includes one ConferenceSHOT AV, one ConferenceSHOT AV Speaker and two EasyMIC Ceiling MicPODs.
Powerful
ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphone and external speaker to the camera. The Integrator 2 Bundle is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.
Simple
ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as standalone solution.
Enterprise Class
ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a built-in Web server enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
This USB-based solution makes it easy for your organization to collaborate using Skype for Business, WebEx, Zoom, BlueJeans, Google Hangouts, Vidyo and other leading UC services.
ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam based technology offerings.
