照相机
图像传感器尺寸 |
1/2.8 " |
最近聚焦距离 |
0.01 m |
水平视野 |
65 ° |
遥控接口 |
IR wireless/RS-232 |
光圈范围 |
1.6 - 4.7 |
最低照明 |
1.4 lx |
传感器类型 |
CMOS |
Camera control algorithm |
Tri-synchronous motion |
焦距 |
4.3 - 129 mm |
Closest focusing distance (tele) |
1.2 m |
联网
电缆标准 |
Cat5e |
以太网的数据传输率 |
10, 100 Mbit/s |
视频
光学变焦 |
30 x |
Maximum frame rate |
60 fps |
像素 |
2.38 MP |
技术细节
公共网络访问范围 |
-160 - 160 ° |
PTZ控制(平移/倾斜/缩放) |
Y |
信号-噪声比(信噪比) |
50 dB |
Tilt speed range |
0.35 - 120 °/sec |
Pan speed range |
0.35 - 120 °/sec |
倾角 |
-30 - 90 ° |
重量和尺寸
摄像头尺寸 (宽 x 深 x 高) |
179.2 x 171.6 x 176.3 mm |
Interface module dimensions (W x D x H) |
114.3 x 28.6 x 79.38 mm |
Interface module weight |
510 g |
Interface module
Interface module USB 2.0 ports quantity |
1 |
Interface module DC input port |
Y |
Interface module Power over Ethernet (PoE) ports quantity |
1 |
Interface module Ethernet LAN (RJ-45) ports |
1 |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
2 |
Exmor 1/2.8”, 2.38MP, FHD, 1080p, CMOS, 30x, PTZ, 50 dB, Quick-Connect USB Mini, International

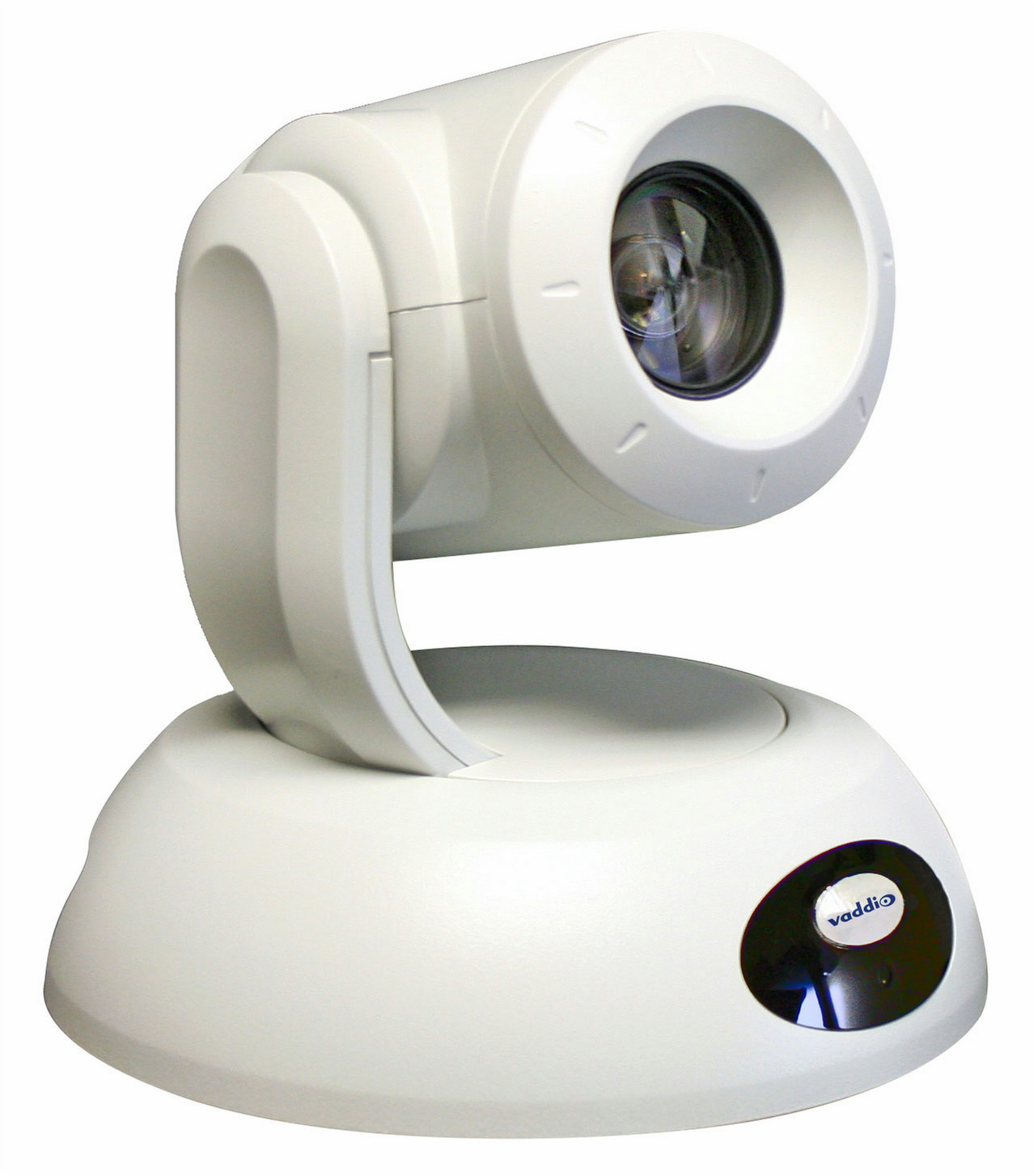

The RoboSHOT 30 HD PTZ Camera is a powerful, professional quality PTZ camera with high quality imaging, exceptional detail and marvelous color reproduction. This camera offers integrators, dealers and end users with an incredible advantage over other professional PTZ cameras available today.
The RoboSHOT 30 is perfect for medium to large rooms and provides exceptional support for applications including, House of Worship services, large auditorium A/V systems, large distance learning classrooms, live event theatres, IMAG for performances, large lecture theatres with lecture capture and more!
One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion, a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.
The USB Mini was designed to require simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.
The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 100' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.
