技术细节
| 频带 |
6 - 60000 kHz |
| 交流电压范围 |
0.6 - 750 V |
| 背光 |
N |
| 阻值范围 |
600 - 60000000 Ω |
| 分辨率（频率） |
1 Hz |
| 基本准确度（直流电压） |
±(0.5%+2d) |
| 基本准确度（交流电压） |
±(0.9%+5d) |
| 基本准确度（交流电流） |
±(1.5%+5d) |
| 容量范围 |
6000 - 6000000 nF |
| 基本准确度（直流电流） |
±(1.0%+2d) |
| 基本精度（电阻） |
±(0.7%+2d), ±(1.0%+2d), ±(1.5%+2d) |
| 交流电流范围 |
0.0006 - 0.006 A |
| 连续性检查 |
Y |
| 数据保持 |
Y |
| 基本准确度（频率） |
±(0.01%+1d) |
| 直流电流范围 |
0.0006 - 0.006 A |
| 基本精度（电容） |
±(1.9%+8d) |
| 分辨率（直流电压） |
0.1 mV |
| 分辨率（交流电压） |
0.1 mV |
| 电阻分辨率 |
0.1 Ω |
| 分辨率（交流电流） |
0.1 µA |
| 直流电压范围 |
0.6 - 1000 V |
| 分辨率（直流电流） |
0.1 µA |
APPA 71, 600mV - 1000V, 600µA - 6000µA, 6000nF - 6.000mF

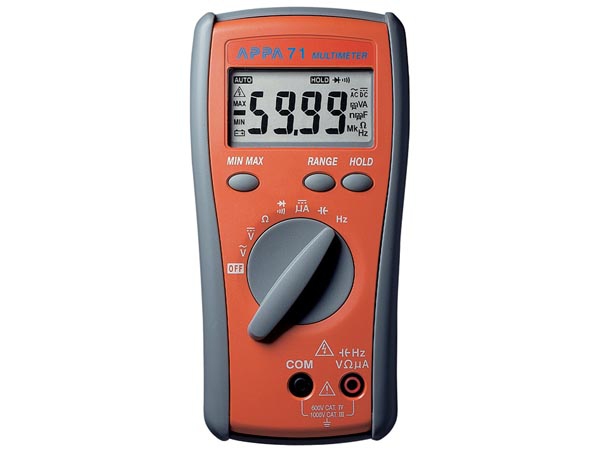

DIGITAL AUTORANGE MULTIMETER APPA 71
- 6000 count digital display
- large display
- 0.5% basic DCV accuracy
- data hold
- MIN/MAX function
- frequency counter
- capacitance measurement
- auto power-off
- 1.2m (4 feet) dropproof
- protective holster with tilt stand
- CAT. IV 600V / CAT. III 1000V
- Important safety information
- DC voltage: 600.0mV ~ 1000V
- basic accuracy: ±(0.5%+2d)
- resolution: 0.1mV
- AC voltage: 600.0mV ~ 750V
basic accuracy: ±(0.9%+5d) @ 50Hz ~ 500Hz
- resolution: 0.1mV
- frequency range: -
- DC current: 600.0µA, 6000µA
- basic accuracy: ±(1.0%+2d)
- resolution: 0.1µA
- AC current: 600.0µA, 6000µA
- basic accuracy: ±(1.5%+5d) @ 50Hz ~ 500Hz
- resolution: 0.1µA
- resistance: 600.0Ω ~ 60.00MΩ
- basic accuracy: 600.0Ω ~ 60.00KΩ ±(0.7%+2d) / 6.000MΩ ±(1.0%+2d) / 60.00MΩ ±(1.5%+2d)
- resolution: 0.1Ω
- capacitance: 6.000nF ~ 6.000mF
- accuracy: ±(1.9%+8d)
- resolution: 1pF
- frequency: 6000Hz ~ 60.00MHz
- basis accuracy: 6000Hz ~ 600.0KHz ±(0.01%+1d) @ 100mV rms / 6.000MHz ±(0.01%+1d) @ 250mV rms / 60.00MHz ±(0.01%+1d) @ 1V rms
- resolution: 1Hz
- overrange "OL" or "-OL"
- continuity buzzer
- diode test open circuit voltage 3V
- low-battery indication
- ranging mode: manual or automatic
- data hold
- dimensions: 76 x 158 x 38 mm
- weight (with battery): ± 400g (with holster)
- power supply: 2 x 1.5V AAA battery LR03C (incl.)
- accessories: test leads / protective holster with stand / ZnC battery (installed) / manual
- auto power-off: ±10 min.
