技术细节
| 交流电压范围 |
0.2 - 1000 V |
| 背光 |
Y |
| 阻值范围 |
200 - 200000000 Ω |
| 基本准确度（直流电压） |
±( 0.8%+2d), ±(1.2%+3d) |
| 基本准确度（交流电压） |
±(1.2%+3d), ±(0.8%+3d), ±(1.2%+5d) |
| 基本准确度（交流电流） |
±(2%+3d), ±(1.8%+3d), ±(3%+5d) |
| 基本准确度（直流电流） |
±(0.8%+3d), ±(1.5%+2d), ±(2%+5d) |
| 基本精度（电阻） |
±(0.8%+3d), ±(0.8%+2d), ±(5%+10d) |
| 交流电流范围 |
0.0002 - 10 A |
| 连续性检查 |
Y |
| 数据保持 |
Y |
| 直流电流范围 |
0.0002 - 10 A |
| 直流电压范围 |
0.2 - 1000 V |

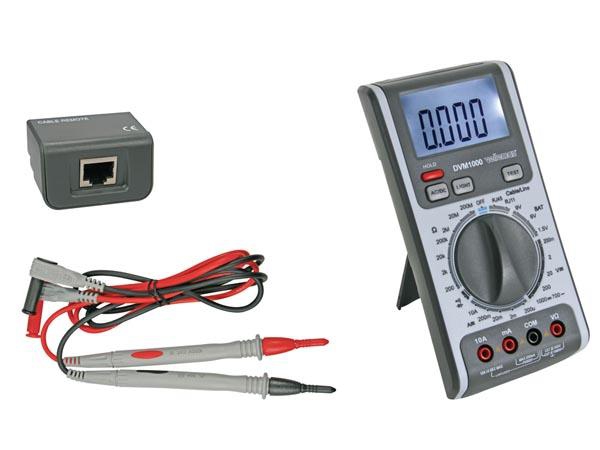

DVM1000, 0.2 - 1000V, 0.0002 - 10A
3 IN 1 MULTIMETER - CABLE / LINE TESTER
- the digital 3 in 1 multitester combines the functions of a multimeter, a phone line tester and a network cable tester
- 2 000 counts LCD display with automatic polarity indication
- data hold function
- continuity and diode test
- white backlight
- battery test: 1.5 / 6 / 9V
- telephone line test
- network cable test (RJ45)
- DC voltage: 0,2V / 2 / 20 / 200 / 1000V
- basic accuracy: ±( 0.8% of rdg + 2 digits) , ±(1.2% + 3digits) for 1000V range
- input impedance: > 10Mohm
- maximum input: 1000V
- AC voltage: 0,2V / 2 / 20 / 200 / 700V
- basic accuracy: ±( 1,2% of reading + 3 digits) for 0.6V range , ±(0,8%+3digits) for 2/20/200V range , ±(1,2%+5digits) for 700V range
- input impedance: > 10Mohm
- frequency range: 40-400Hz
- maximum input: 700V
- DC current: 200uA / 2m / 20m / 200m / 10A
- basic accuracy: ±( 0,8% of reading + 3 digits) for 200u / 2mA / 20mA range , ±(1,5%+2digits) for 200mA range , ±(2%+5digits) for 10A range
- overload protection: 200mA/250V fuse for all ranges except 10A
- AC current: 200uA / 2m / 20m / 200m / 10A
- basic accuracy: ±( 2% of reading + 3 digits) for 200u / 2mA / 20mA range , ±(1,8%+3digits) for 200mA range , ±(3%+5digits) for 10A range
- overload protection: 200mA/250V fuse for all ranges except 10A
- resistance: 200 / 2k / 20k / 200k / 2M / 20M / 200M
- basic accuracy: ±( 0,8% of reading + 3 digits) for 200 Ohm range , ±(0,8%+2digits) for 2K...20M range , ±(5%+10digits) for 200Mohm range
- overload protection: 250Vdc or 250Vrms
- overrange: yes "1."
- continuity buzzer: yes
- transistor test: no
- diode test: yes
- low-battery indication: yes
- maximum display: 1999
- LCD display size: 15mm
- ranging mode: manual
- data hold: yes
- backlight: yes
- dimensions: 85 x 185 x 45mm
- weight (with battery): ±360g
- power supply: 9V battery (incl.)
- accessories: user manual / test leads / battery / remote box for cable testing
- auto power-off: no
