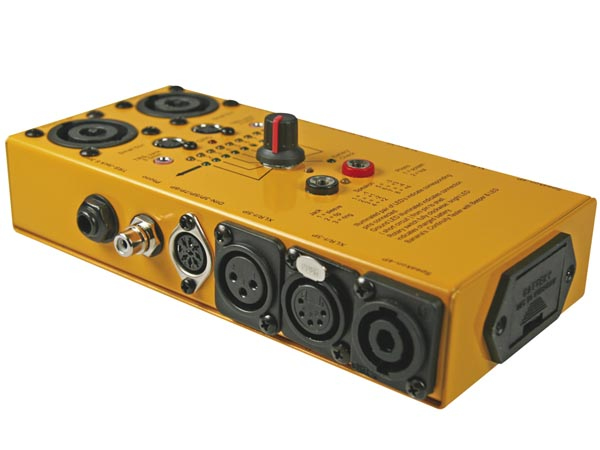

Audio Cable Tester, 10 Way
Features
- enables quick and convenient continuity cable testing for all types of audio cables
- continuity test function (buzzer and LED indication)
- suited for the following connectors and their combinations:
6.3mm jack
3.5mm jack
XLR 3P (M/F)
XLR 5P (M/F)
phono / RCA
banana plug
Speakon 8P
Speakon 4P
DIN 3P / 5P / 7P / 8P
5-pin mini DIN
- LEDs confirm each conductor connection
- 9-way switch for selecting connections to be tested
- battery check function
- rugged, compact, metal construction for ultimate roadworthiness, long life and reliability
- includes one pair of probes
