IR Light 10 distances up to 140m (460ft)
- High efficiency SMDLED
- High efficiency heat sink body to ensure maximum LED durability
- Strong aluminium structure
- Beam pattern: 10°, 30°, 60°
- Wavelengths: 850nm, 940nm and white light
- Adjustable built-in photocell
- VOLT free relay contact for external activation
- It can be mounted under a housing using the OSUPPIR bracket
- Supplied with a wall-mount bracket
- IP66/IP67
State of the art illuminator, which provides high reliability and excellent image quality. The GEKO lights the entire scene evenly, eliminating hotspots and underexposures, for unbeatable night-time images and secure surveillance of the area. The high efficiency heat sink body ensures maximum LED durability and
protection against over-temperatures, whereas the front glass, made of special technopolymer, provides high infrared transmittance (transparent glass in the white light version). The GEKO illuminators are protected against electrostatic discharges. These illuminators incorporate a circuit that allows them to be powered directly from a 12-24Vdc or 24Vac supply.
A weatherproof box with 230Vac or 120Vac power supply is available as accessory for one or two GEKO illuminators.

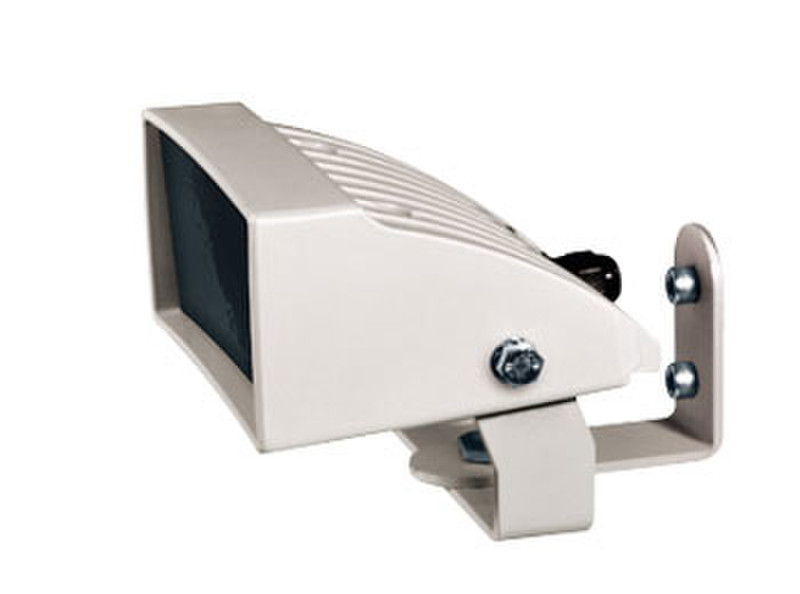

GEKO is supplied with a wall-mount bracket that rotates horizontally and vertically
and can be assembled in a housing by means of the OSUPPIR bracket.
