性能
| 无线局域网连接 |
N |
| 酒店模式 |
N |
| 面板寿命 |
30000 h |
| 集成电视调谐器 |
N |
| HDCP |
N |
| 屏幕显示 |
Y |
技术细节
| 功耗（平均打印） |
105 W |
| 面板亮度 |
350 cd/m² |
| 控制台端口 |
RS-232 |
| 重量（不含底座） |
8700 g |
| 深度（不含底座） |
59.9 mm |
| 面板类型 |
TFT |
| RS-232 输入端口 |
1 |
| 显示器可视区域 HxV |
940.9 x 529.25 mm |
| LED背光类型 |
Direct-LED |
| 数字调谐器 |
N |
| S-视频端口 |
N |
| USB需求 |
Y |
| USB 连接器形状 |
USB Type-A |
显示器
| 有效显示区域（宽×高） |
940.9 x 529.25 mm |
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LED |
端口 & 界面
| VGA（D-SUB）输入端口 |
1 |
| USB 端口数量 |
1 |
| HDMI输入 |
2 |
| RS - 232接口 |
Y |
| USB版本 |
2.0 |
| HDMI端口数量 |
2 |

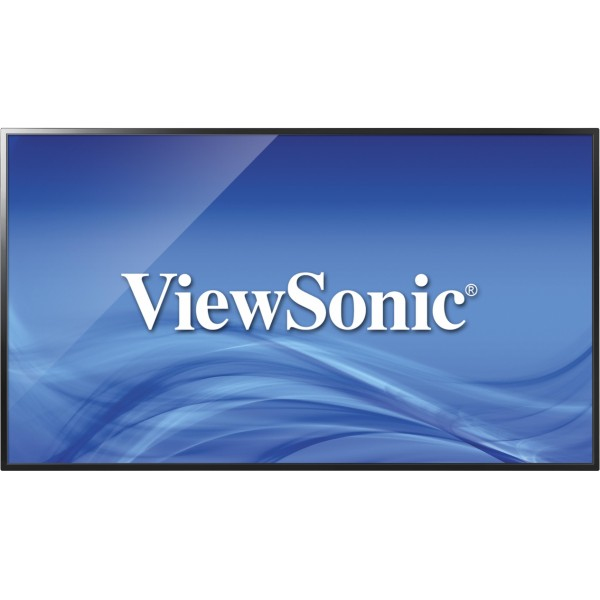

43’’ Full HD Direct-lit LED Commercial Display, HDMIx2, 10W x2
The ViewSonic CDE4302 is a 43’’ Full HD direct-lit LED commercial display, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. With an integrated media player, the CDE4302 is able to easily playback high definition messaging via your USB port. Versatile connectivity options include 2 HDMI ports, VGA, RS232 and SPDIF. The display provides an easy one-time installation and is compatible with many different devices. With Full HD resolution, 350-nit brightness, and wide viewing angles, the slim-bezel CDE4302 delivers sharp and vivid images to ensure smooth content playback. This display also supports HDMI CEC pass-through for one-touch-play and an RS232 control port with IR pass-through for easy installation. The display is also equipped with exclusive eye-care technologies, including Flicker-Free and Blue Light Filter, creating a more comfortable viewing experience. Free-bundled vController software offers easy maintenance and an intuitive interface for remote management via a PC server or laptop.
Direct LED backlight technology for superior colour performance
ViewSonic’s CDE4302 commercial display features direct LED backlight technology to deliver more accurate and consistent colour performance while reducing energy consumption. The display provides superior colour uniformity in any environment, as well as lowers overall cost of ownership which is ideal for corporate, SMB, retail, and restaurant uses.
Integrated USB Multimedia Player
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.
Superior screen performance
Featuring a 1920 x 1080 Full HD resolution and 350-nit brightness, the CDE4302 provides superior screen performance for in-door environments. The display also features wide viewing angles, delivering accurate, vivid colours and consistent colour performance with no distortion or decay.
Advanced dual speakers for crystal-clear sound
CDE4302’s 10W speaker design delivers incredible sound for high-quality sound effects—creating a lasting audio-visual impression on your target audience or demographic.
Free Bundled vController Software
vController software (Included) provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.
IR pass-through for multi-device control
The CDE4302’s RS232 control port features IR pass-through to provide automated control for hospitality and commercial display installations. IR pass-through offers local control for set-top boxes or other connected devices, directly with the display’s remote controller.
HDMI CEC opens a world of HDMI possibilities
With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller for a wider range of viewing possibilities.
