技术细节
| PC机(D型接口) |
N |
| 颜色数量 |
1.073 billion colours |
| 面板类型 |
TFT |
| RS-232 输入端口 |
1 |
| USB 连接器形状 |
USB Type-A |
端口 & 界面
| PC音频 |
Y |
| DVI端口 |
N |
| RS - 232接口 |
Y |
| USB版本 |
2.0/3.0 (3.1 Gen 1) |
| HDMI端口数量 |
2 |
| VGA（D-SUB）输入端口 |
1 |
| USB 端口数量 |
3 |
显示器
| 有效显示区域（宽×高） |
803.52 x 1428.48 mm |
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LCD |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
LCD, 165.1 cm (65 ") , 1920 x 1080, Full HD, 350cd/m2, 8ms, LEd Backlight, 1.07Billion colors, processor Quad-core, VESA 400 x 400
Overviev

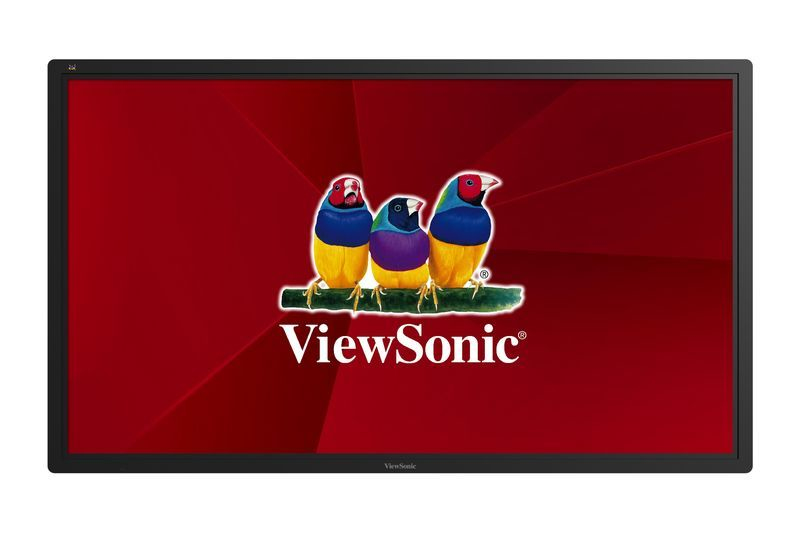

The ViewSonic® CDE6502 is a 65’’ (64.5” viewable) Full HD commercial display with 1920 x 1080 resolution, 350-nit brightness, wide viewing angles and dual 10W speakers, providing high-impact messaging in hotels, restaurants, and other businesses. In addition to HDMI and VGA inputs to connect with various high definition devices, the display utilizes an integrated quad-core processor and 8GB of internal memory, allowing customers to playback multimedia content via USB or web browsing through RJ45 connectivity without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment.
Advanced media player
Integrated customized Android-based media player, the display provides flexible content loading options and web browsing via LAN connectivity, without the need of an external media player or a PC.
USB multimedia playback
This display features a convenient USB multimedia playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive.
Quad-core Processor and RJ-45 Connectivity
Integrated with a powerful quad-core processor and RJ45 connectivity, the display offers web browsing functionality. Users can search for information online and display media content on the display directly without the need to connect with other computing devices. In addition, RJ45 connectivity also provides intranet and wireless capabilities when connecting to a wireless router.
Free Bunded vControlled Software
Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.
Control Multiple Devices
RS232 IR pass-through offers local control for set-top boxes, and other RS232 connected devices, directly with the display’s remote controller.
HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
Enhanced Vieving Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Dual integrated speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience.
