端口 & 界面
| DVI端口 |
Y |
| USB端口 |
N |
| RS - 232接口 |
Y |
| HDMI端口数量 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| VGA（D-SUB）输入端口 |
2 |
| DisplayPort 数量 |
1 |
| DVI-D接口数量 |
2 |
显示器
| 有效显示区域（宽×高） |
929.6 x 523.2 mm |
| 降噪设备 |
Y |
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LED |
包装数据
| 手持式遥控器 |
Y |
| 远程控制类型 |
IR, RS-232, RJ-45 |
| 配有电池 |
Y |
| 快速入门指南 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
106.68 cm (42 ") TFT LED, 1920 x 1080, 16:9, 450 cd/m2, CR 1300:1, 12ms, HDMI, DVI-D, DisplayPort, VGA, YPbPr (BNC), RS232, RJ-45

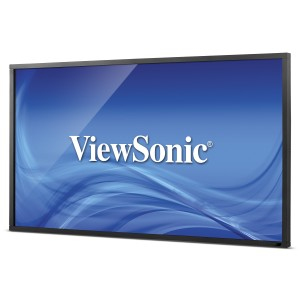

The ViewSonic CDP4260-L is a 42” commercial LED display designed for use 24 hours a day, 7 days a week. The CDP4260-L is ideal for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 15.8mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP4260-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. The CDP4260-L can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Equipped with DVI-out, the CDP4260-L supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function make the CDP4260-L an easy-to-manage solution for 24/7 use.
Key Features:
- 1080p Full HD commercial display for high-definition multimedia applications
- Narrow bezel design maximizes impactful visual imaging
- 24/7 commercial-grade design for landscape and portrait installations
- Mercury-free LED backlight reduces power consumption
- SuperClear wide viewing angle technology delivers accurate and vivid colors from nearly any angle
- Versatile I/O ports: HDMI, DisplayPort, DVI, CVBS, YPbPr (YCbCr), VGA and RS232 for easy connection to a variety of equipment
- Supports RS232 with IR pass-through for updating/managing display settings
