端口 & 界面
| 遥控器（IR）输出 |
2 |
| 遥控器（IR）输入 |
2 |
| HDMI输入 |
1 |
| HDBaseT port |
Y |
| USB 连接器形状 |
Micro-USB A |
| USB版本 |
2.0 |
| USB 端口数量 |
1 |
| DC-IN插口 |
Y |
指示灯
| 液晶显示器指示灯 |
Link, Power, Status |
技术细节
| HDCP |
Y |
| 最大传输距离 |
70 m |
| 类型 |
AV transmitter & receiver |
70m, IR, HDBaseT, HDMI 1.4a, HDCP 1.2, Black

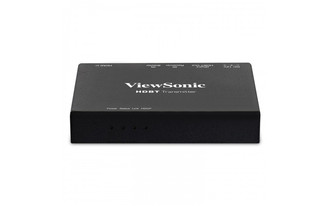

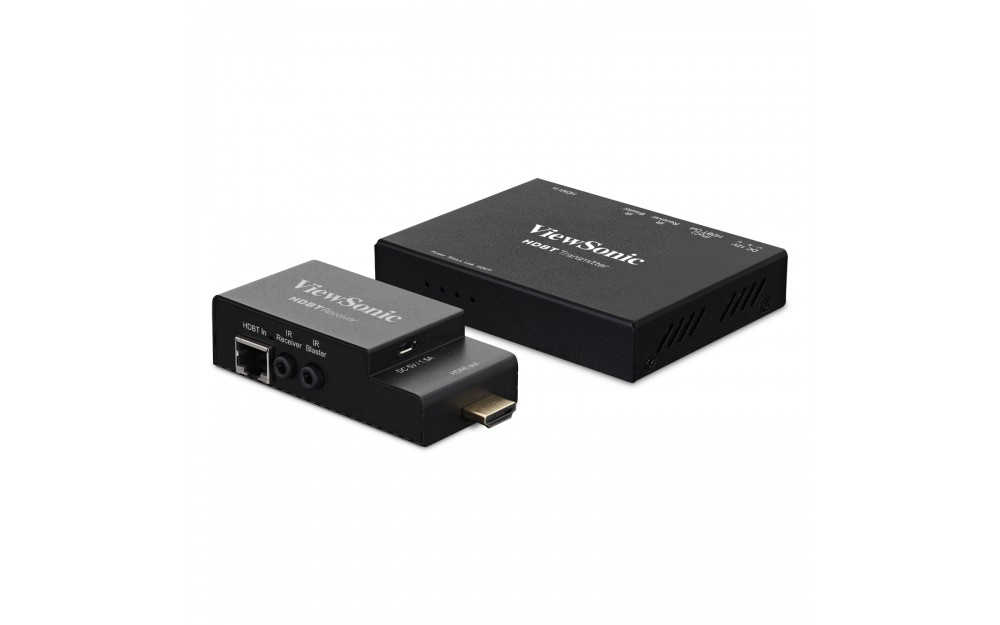

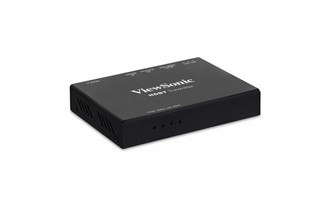

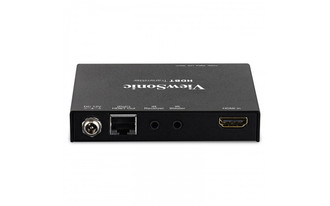

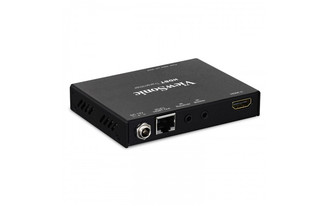

Take your digital video installations to new lengths with the high-performance, small form factor ViewSonic® HB10B HDBaseT® Transmitter and Receiver kit. Featuring an integrated HDMI connector, as well as a miniature form factor, the HDBaseT receiver seamlessly integrates into almost any display device with an HDMI input. Utilizing HDBaseT technology, the HB10B kit is capable of sending uncompressed HD video and audio from over 200ft. away via network cable. With an integrated IR blaster and receiver ports, the HB10B kit lets you take control of your media equipment on both ends with bi-directional control. The HDBaseT receiver comes equipped with PoC and micro USB power, making it one of the most versatile receivers in the market. In addition to seamlessly integrating with almost any HDMI-based display devices such as televisions, large format displays, digital signage, etc. the HDBaseT receiver also fits into any PortAll® compartment available on select ViewSonic® projectors – enabling you to discreetly stream uncompressed multimedia content from set-top boxes, Blu-ray players, AV receivers and more.
Bi-directional IR Commands
Integrated IR blaster and receiver ports allow you to take control of your media equipment on both ends with bi-directional control.
HDMI 1.4a 3D Content and HDCP Pass-through
With compliance to the HDMI 1.4a specification, all audio and video transmitted, including 3D content, meets high-def standards for capacity, performance, resolution, and color. With HDCP compliance, data is encrypted when transmitted between the source and the display, thus preventing the possibility of illegal interception or copying of the data.
Built-in PoC and Micro USB Power
Designed with Power over Cable (PoC), the HDBaseT receiver can be powered when it is connected to the HDBaseT transmitter via Ethernet. With a Micro USB input, the HDBaseT receiver can also be powered by an external source or by the display or projector.
Seamless Installation with Display Devices
Featuring an integrated HDMI connector, as well as a miniature form factor, the HDBaseT receiver seamlessly integrates into almost any display device with an HDMI input. This includes televisions, large format displays, digital signage, and projectors.
One-wire HDBaseT® Input
With an integrated HDBaseT input, this display can receive uncompressed HD video and audio over long distances via a single network cable.
