显示器
| 显示器尺寸 |
22 " |
| 响应时间 |
5 ms |
| 对比度 |
3000:1 |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，水平 |
170 ° |
| 视角，垂直 |
160 ° |
| 显示器可视区域 HxV |
482.6 x 271.8 mm |
| 显示器亮度 |
250 cd/m² |
| Full HD |
Y |
| LED背光源 |
Y |
| 显示类型 |
LED |
人体工程学
| 支持装配位置 |
Horizontal |
| 线缆锁插槽 |
Y |
| VESA 安装系统兼容界面 |
100 x 100 mm |
| 倾斜调整 |
Y |
| 墙壁支架 |
Y |
| 倾角 |
15 - 70 ° |
性能
| 扬声器数量 |
1 |
| 内置麦克风 |
Y |
| 同步接触点的数目 |
2 |
| 连接到PC |
Y |
| 即插即用 |
Y |
| RMS的额定功率 |
2 W |
| 可支持的Mac操作系统 |
Y |
| 内置摄像头 |
Y |
| 可支持的Windows操作系统 |
Y |
| 触摸屏 |
Y |
能量控制
| 功耗（一般操作） |
36 W |
| 交流电（AC）输入频率 |
50/60 Hz |
| 电源类型 |
AC |
重量和尺寸
| 深度 |
353 mm |
| 重量 |
4800 g |
| 宽度 |
512.8 mm |
| 高度 |
56.6 mm |
认证标准
| 认证 |
CE, CB, C-Tick, UL/CUL, FCC-B, FCC-C, IC RSS-210, SRRC, Gost-R, FAC, WEEE, RoHS, REACH, SVHC, ErP |
包装数据
| 包装盒厚度 |
123 mm |
| 包装重量 |
5800 g |
| 包装盒宽度 |
598 mm |
| 包装盒高度 |
428 mm |
另外
| 产品色彩 |
Black |
| 显示器对角线（公制） |
55.88 cm |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 35 °C |
SD-A225, 55.88 cm (22 ") , TI OMAP4470 Dual Core 1.5GHz, Android™ 4.1 w/ Citrix XenMobile, 1GB (DDR2), 8GB (eMMC4.4), 1920x1080, 1000:1, 250 cd/m2, 5ms, Wi-Fi, Bluetooth V2.1, 36W, 4.8 kg, Black

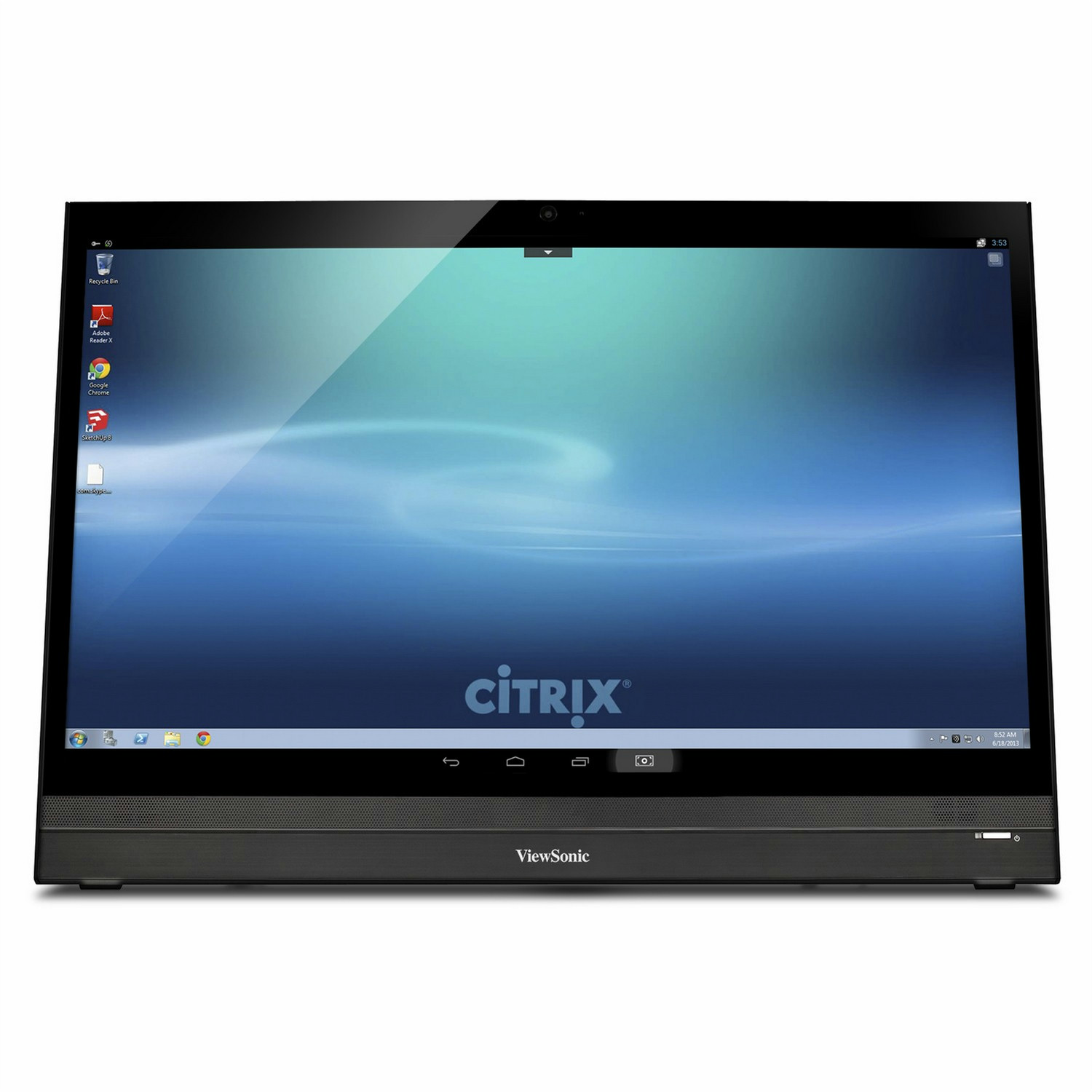

The ViewSonic SD-A225 is a 22” (21.5” viewable) multi-touch smart display client with 1920x1080 Full HD resolution, and a TI Dual Core OMAP. With Citrix XenMobile pre-installed, the SD-A225 is a completely locked-down, secured, and manageable device for your business. Now you can easily provision and deploy both your mobile and desktop devices. Versatile connectivity options include Micro HDMI, three USB ports (2 Type A and 1 Micro USB OTG), Micro SD card reader, RJ45, headphone jack, and 1.3MP webcam with integrated microphone for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents, and multimedia files. Integrated speakers with SRS 3D complete the package for multimedia enjoyment. The SD-A225 provides the security and control needed on the desktop to leverage the investments being made in mobile and cloud-based tools.
- 22” (21.5” viewable) all-in-one smart display client
- Full HD 1920x1080 resolution with Dual Point Optical Touch technology
- Features TI Dual Core OMAP Processor
- Android 4.1 with Citrix XenMobile
- USB HID Compliant Dual Point Optical Touch for intuitive interaction
- Integrated 1.3MP webcam for crystal clear video conferencing
- Includes Bluetooth, Wi-Fi 802.11b/g/n, and RJ45 Gigabit Ethernet
- Integrated speakers with SRS 3D
