显示器
绿色同步 |
Y |
独立h/v同步 |
Y |
显示器尺寸 |
24 " |
可视尺寸,横向 |
521.28 mm |
可视尺寸,纵向 |
293.22 mm |
数字垂直频率 |
50 - 75 Hz |
数字水平频率 |
24 - 82 kHz |
对比度(动态) |
50000000:1 |
响应时间 |
5 ms |
复合同步 |
Y |
色域 |
72% |
对比度 |
3000:1 |
显示器分辨率 |
1920 x 1080 pixels |
视角,水平 |
178 ° |
视角,垂直 |
178 ° |
显示器亮度 |
250 cd/m² |
显示技术 |
VA |
背光类型 |
LED |
LED背光源 |
Y |
显示类型 |
TFT-LCD |
端口 & 界面
PC音频 |
Y |
DVI-D接口数量 |
1 |
音频输入 |
3.5mm |
USB2.0端口的数量 |
3 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
重量和尺寸
含底座尺寸(宽 x 深 x 高) |
571.08 x 240 x 392.2 mm |
重量(含底座) |
5160 g |
深度 |
339.8 mm |
重量 |
6320 g |
宽度 |
571.08 mm |
高度 |
57.71 mm |
性能
扬声器数量 |
2 |
内置麦克风 |
N |
OmniTapps多点触控兼容性 |
N |
连接到PC |
Y |
RMS的额定功率 |
4 W |
触控技术 |
Dual-touch |
内置摄像头 |
N |
内置扬声器 |
Y |
能量控制
功耗(一般操作) |
16.5 W |
交流电(AC)输入电压 |
100-240 V |
交流电(AC)输入频率 |
50/60 Hz |
能源之星认证 |
N |
电源类型 |
AC |
人体工程学
VESA 安装支架 |
Y |
VESA 安装系统兼容界面 |
100 x 100 mm |
倾角 |
22 - -6 ° |
包装数据
包装盒厚度 |
200 mm |
包装重量 |
7290 g |
包装盒宽度 |
640 mm |
包装盒高度 |
460 mm |
另外
显示器的颜色数量 |
16.78 million colours |
产品色彩 |
Black |
运行温度范围(T - T) |
32 - 40 °C |
60.96 cm (24 ") , 5ms, 250cd/m², 1920x1080px, VA, 3000:1, TFT-LCD

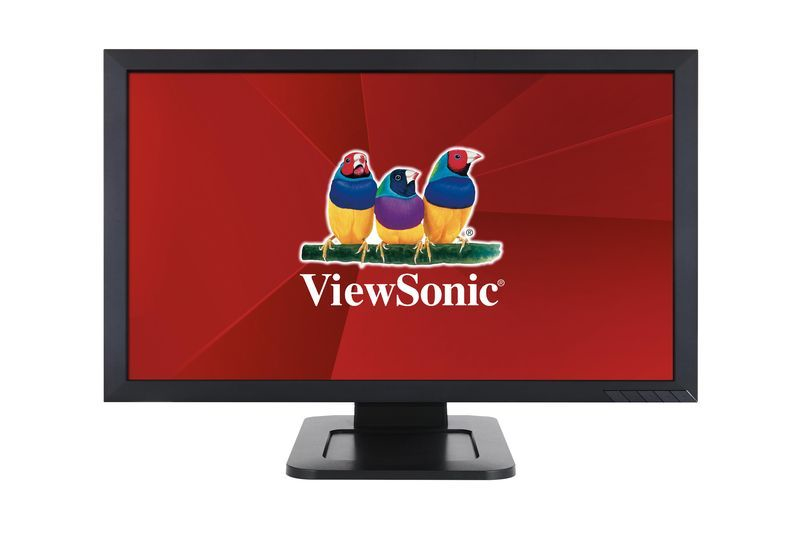

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio, and SuperClear MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.
Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.
Compatibility with Windows operating systems, including Windows 7, 8 and 10.
HDMI, USB2.0, DVI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
