电视调谐器
| 自动频道搜索 |
Y |
| 模拟信号系统 |
NTSC |
| 调谐器类型 |
Analog & Digital |
| 数字信号格式系统 |
ATSC |
显示器
| 显示器尺寸 |
15.6 " |
| 响应时间 |
11 ms |
| 屏幕形状 |
Flat screen |
| 对比度 |
650:1 |
| HD 类型 |
Not supported |
| 视角，水平 |
90 ° |
| 视角，垂直 |
65 ° |
| 显示器亮度 |
220 cd/m² |
| 显示器分辨率 |
1366 x 768 pixels |
| 长宽比 |
16:9 |
端口 & 界面
| PC机(D型接口) |
N |
| PC音频 |
Y |
| DVI端口 |
N |
| 共通介面 |
N |
| Plus通用接口（CI +） |
N |
| 耳机输出端口 |
1 |
| 音频输入（左、右声道） |
2 |
| USB2.0端口的数量 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
2 |
| 数字音频光学输出 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| RF端口数量 |
1 |
| HDMI端口数量 |
1 |
重量和尺寸
| 重量（含底座） |
1300 g |
| 深度 |
145 mm |
| 宽度（含底座） |
373.3 mm |
| 重量 |
1100 g |
| 宽度 |
373.3 mm |
| 高度 |
227.5 mm |
| 深度（含底座） |
139.3 mm |
| 高度（含底座） |
271.3 mm |
人体工程学
| VESA 安装支架 |
Y |
| VESA 安装系统兼容界面 |
75 x 75 mm |
| 倾角 |
-10 - 10 ° |
音频
| 扬声器数量 |
2 |
| RMS的额定功率 |
3 W |
| 内置扬声器 |
Y |
性能
| 支持的视频格式 |
JPG |
| 音频格式支持 |
MP3 |
| 双亲控制 |
Y |
认证标准
| RoHS符合性 |
Y |
| 认证 |
FCC, UL, NOM |
| 能源之星认证 |
Y |
另外
| 产品色彩 |
Grey |
| 以太网连接器 |
N |
| 开/关切换钮 |
Y |
| 运行温度范围（T - T） |
0 - 40 °C |
| 能源效率等级 |
Unspecified |
39.624 cm (15.6 ") color TFT active matrix, wide LCD with WLED backlight, 1366 x 768, 11ms, 220 cd/m2, 16:9, VGA, HDMI, ATSC/NTSC/QAM HDTV tuner

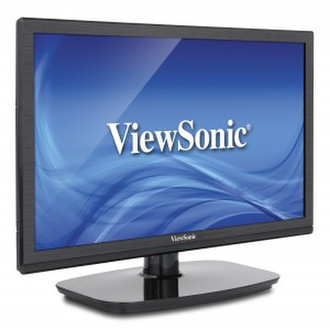

The ViewSonic VT1602-L is a 16" (15.6" viewable) professional monitor with "edge white" LED technology, and a built-in ATSC/NTSC/QAM HDTV tuner ideal for hotel, retail, restaurant, and lounge TV systems. Featuring 1366 x 768 resolution, 650:1 contrast ratio, and 220-nit brightness, the VT1602-L delivers high-quality image performance. Integrated HDMI, D-Sub and YPbPr video inputs allow for versatile connectivity for high-definition devices. USB playback provides easy small-screen desktop signage by playing JPEG media files and MP3 audio. Users can also set up specific product calibration with internal programming features. Dual integrated 3W speakers and SPDIF functionality also make this LED TV a complete multimedia entertainment package.
- Built-in ATSC/NTSC/QAM HDTV tuner to receive high-definition TV programming
- Mercury-free LED backlight and 1366 x 768 resolution
- HDMI–HDCP digital video input with high definition content protection (HDCP) for digital rights management.
- Programmable hospitality set-up with USB cloning feature

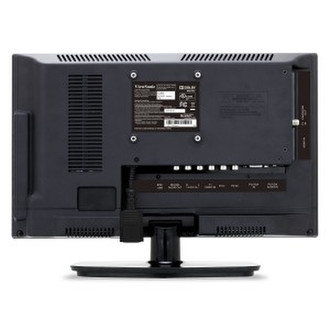

- HDMI, D-Sub, YPbPr versatile inputs
Built-in HDTV Tuner
The ViewSonic VT1602-L commercial TV has a built-in ATSC/NTSC/QAM HDTV tuner that receives both analog and Full HD high-resolution TV signals. The built-in tuner offers viewers more content choices by delivering a wider range of HDTV channels, including channels for business, sports, education, movies, etc.
