安装
| 最大承重量(最大载重能力) |
227.3 kg |
| 支持的显示器数量 |
4 |
116.84 cm (46 ") x 4, Steel, 227.3 kg max

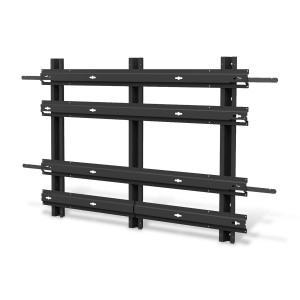

This 2x2 SmartView kit mounts four ViewSonic LCD displays to a structural wall in a 2 by 2 landscape configuration. It then receives LCD monitors by way of four machined fittings (per monitor) that thread into the monitor’s own VESA holes and insert into the SmartView channel. Monitors are secured to the frame by way of locking arms, which provide an easy way to remove monitors for service. Removable panels located at the bottom corners of the frame conceal two compartments for installing and operating media players and other devices, which mount to the wall behind the monitors.
