技术细节
| 类型 |
AV transmitter |
| 最大传输距离 |
1830 m |
重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
41 x 74 x 25 mm |
Active Video Transmitter, NTSC, PAL, SECAM, 20Hz - 6MHz, BNC connector
- Quality video over 6,000 feet (1,830 m) of unshielded
- twisted pair wires
- NTSC, PAL and SECAM video format compatible
- Female BNC and terminal blocks or RJ-45 connectors
- 70 dB cross talk and noise immunity
- Full ground-loop immunity & built-in surge protection
- A single distance adjustment for video
- Screw-less connectors
- Compact size and easy installation
- Limited lifetime warranty

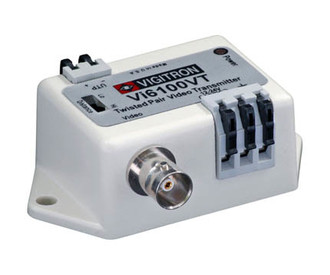

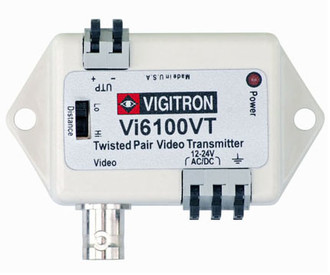

The Vigitron Vi6100VT is an advanced active device that transmits high resolution color or black and white video over unshielded twisted pair wires. The Vi6100VT uses category 2-7 UTP wire at distances up to 6,000 feet (1,830 m) and is designed to be paired with any Vigitron Vi6100 series active receivers.
The Vi6100VT is a compact unit. The power requirement is 12-24 Volts AC or DC, auto-ranging and reverse polarity protected. This flexibility allows to power the transmitter from the same power supply as the camera, or it can used with the provided power supply. Along with the screw-less wire terminals makes the Vi6100VT very easy to install. The Vi6100VT has a single distance adjustment. It also has built-in surge suppression to protect video equipment against damaging voltage spikes.
Its integrated ground loop isolation prevents disturbing "hum-bars" common with long distance installations and its excellent crosstalk and noise immunity provides quality video up to the maximum distance. The Vi6100VT innovative design offers exceptional quality video and system flexibility that makes it ideal for a wide variety of applications that require multiple video channels, and makes a cost effective alternative to expensive fiber optic solutions.
