技术细节
类型 |
AV receiver |
可支持的电缆类型 |
Cat5e, Cat5, Cat6 |
最大传输距离 |
120 m |
重量和尺寸
接收器尺寸(宽 x 深 x 高) |
58 x 110 x 26 mm |
接收器的重量 |
480 g |

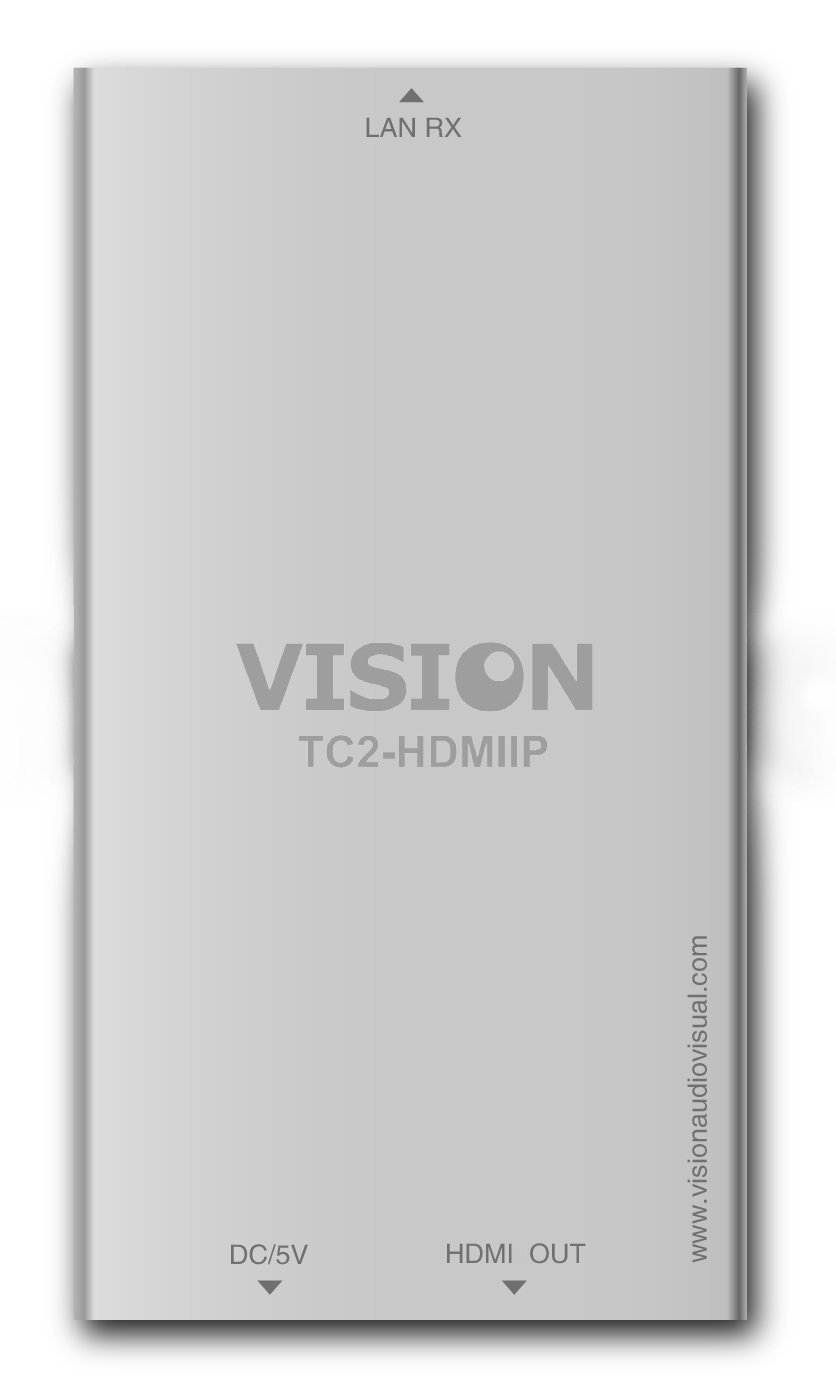

HDMI-over-IP, Receiver, CAT5/5E/6, Full HD, 120m Max
Part of Vision’s “Techconnect Twist” product family, the TC2-HDMIIP converts HDMI signal into TCP/IP packets for transmission over a 100/10 megabit ethernet network. With no visible loss of video or audio quality it is perfect for corporate and digital signage applications.
Multiple receivers on the network will all display the content from one transmitter. Or if you need to install multiple discreet sets this can be done by setting up virtual LANs on the network switch.
Full HD
Fully HDCP complaint, it supports a wide range of resolutions up to 1080P plus full digital audio. Note: 3D not supported.
Plug and Play
EDID (extended display identification data) is automatically passed through. Connect equipment and it just works.
EQ-Free
The signal passes through a network without the normal skew and balancing distortion.
Full-Motion
Video is compressed using the JPEG protocol, but at 30 frames per second there is no visible degradation or delay. Images are full colour with smooth motion.
LAN Protocols
Despite using the standard IP protocols you don’t need to be a network engineer. If you connect the transmitter directly to the receiver you don’t need to use a network crossover cable.
Dual-Power
This product requires a power supply at each end.
