技术细节
| 最大传输距离 |
50 m |
| 带宽 |
6.75 Gbit/s |
| 无线局域网连接 |
N |
| 类型 |
AV transmitter & receiver |
| 可支持的电缆类型 |
Cat5e, Cat6 |
能量控制
| 电流 |
2 A |
| 外接电源转接器 |
Y |
| 工作电压 |
12 V |
重量和尺寸
| 接收器尺寸(宽 x 深 x 高) |
82 x 44 x 24 mm |
| 发射器尺寸(宽x深x高) |
71 x 21 x 48 mm |
端口 & 界面
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| HDMI输入 |
1 |
| DC-IN插口 |
Y |
另外
| 包括 AC 适配器 |
Y |
| 以太网连接器 |
Y |
| 无线连接 |
N |
6.75Gbps, 1920×1200 / 1080P, HDMI 1.3, 3D, 30Hz, CAT5e, CAT6,

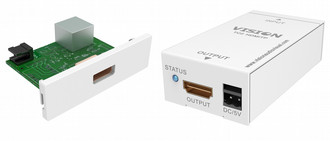

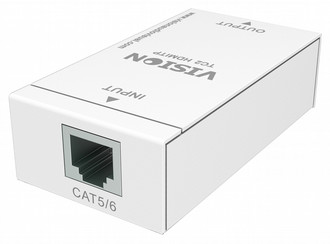

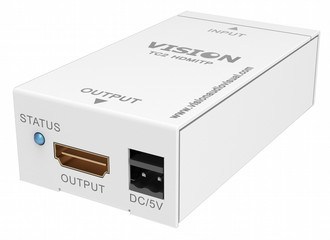

Vision’s “Techconnect Twist” products allow a variety of signals to be transmitted long distances over standard unshielded CAT5e and CAT6 cable. Sold as a transmitter and receiver set, the ‘TC2 HDMITP’ enables use of inexpensive and flexible UTP (unshielded twisted pair) cable to route HDMI signal from a computer to a display device.
<b>Faster Installation</b>
Installers can take advantage in buildings which have been flood-wired with network cable. Where a CAT5 cable is already in place the installation is super-fast.
<b>Techconnect Module</b>

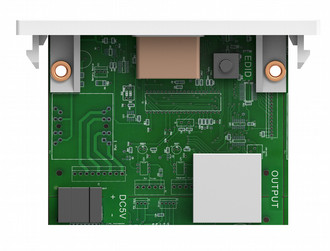

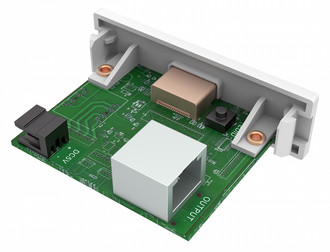

The transmitter presents as an ordinary Techconnect HDMI module from the front, allowing tidy clip-in installation. The circuit on rear of the module is packed with technology.
