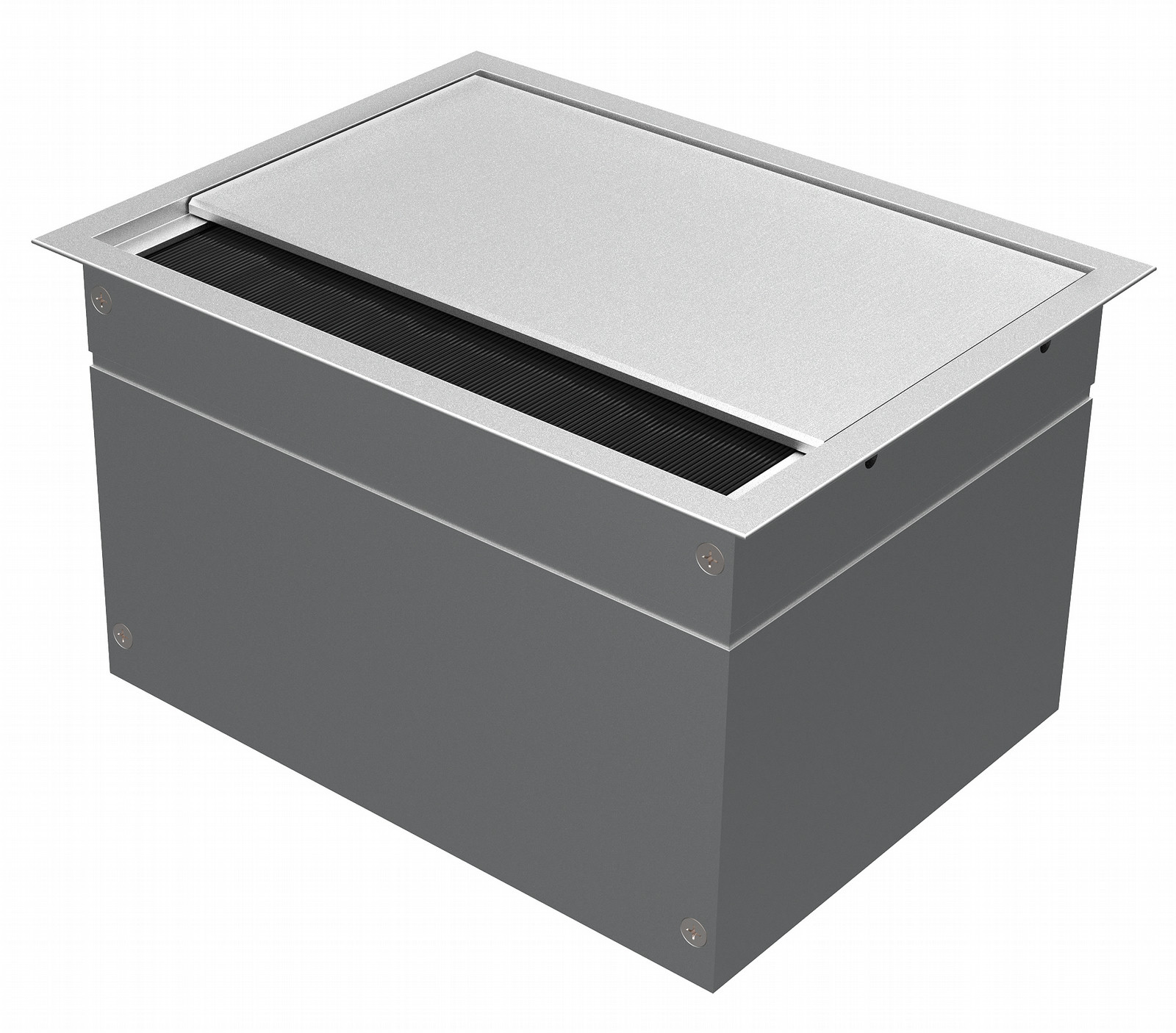

TECHCONNECT Table / Floor Mounted Faceplate
- Aluminium with thin 6.5mm bezel
- Variable faceplate height
- Surround (included) can accommodate up to 5 modules
Techconnect Tilt2 compliments modern meeting room décor with sleek, clean design. It allows convenient placement of a modular AV faceplate in a table surface within easy reach.
Quality Materials
The entire chassis is constructed from extruded aluminium, so where the box might be visible – for example a table with a glass surface – it looks attractive.
Floor Box
With a depth of 96mm the Techconnect Tilt2 can be mounted into false floors. A cutting guide is designed into the chassis to allow the depth to be reduced further.
Easy-Access
The surround can be mounted near the surface directly under the lid so the users don’t have to lean right over the table to see the inputs.
Variable Height
If users prefer to leave cables plugged in with the lid closed, the surround can lowered 65mm and mounted at the bottom of the chassis.
Pull-Out-Cable-Style
With the surround fitted in the lower position blank Techconnect modules can be modified to allow a cable to be installed under the table and pulled up from the faceplate.
Manual Lid
With a simple manually operated flip-up lid the chassis can be smaller and there is no gas ram which can be prone to failure. The lid opens to 130 degrees.
