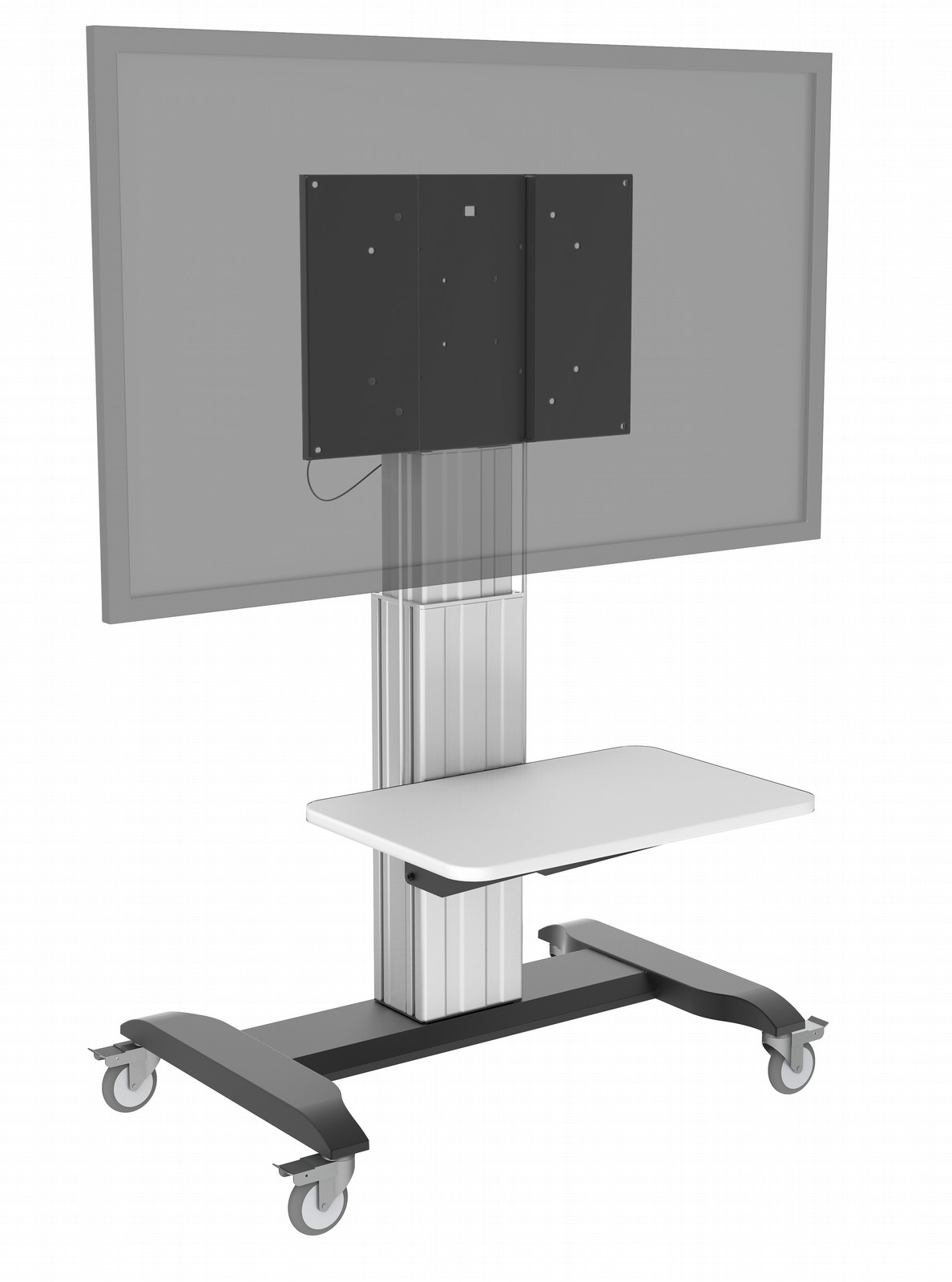

Vision TM-IFP SHELF flat panel floorstand

Flat Panel with shelf Floor Stand, Linear-drive, 15mm/s, 500mm, Black and Aluminium Robust and simple, the Techmount for flat-panels fits any flat-panel LCD or LED screen which uses VESA mounting points up to 600mm (23.6″) wide x 400mm (15.7″) tall apart. In standard guise it fixes to the floor but an optional portable conversion kit is available.

SWL 115kg
Interactive and non-interactive flat-panels both use the same VESA mounting point system, but interactive flat panels are much heavier. The linear-drive motor can lift up to 115kg (253.5 lbs) and is smooth and quiet.

Cable Retraction
The TM-IFP features a dynamic cable management system which uses retracting reels to help avoid the power and input cables dropping into sight when the flat-panel is lowered.

Remote Control
A simple cable remote control fits to the rear of the flat panel out of reach from little fingers.

Wall Anchors
A stand-off bracket fixes the column to the wall and allows dado rail to pass behind the assembly.

Shared Power
An integrated power output means the flat-panel and mount can share a single power cable.

Rear Cubby
Accommodation for cable-tying power distribution block or media player at rear.

Hang and lock
With the VESA plates attached to the flat-panel the screen assembly simply lowers on to the upper column and bolts lock it in place.

Cable Management
An aluminium cable trunking strip on the lower part of the column hides cables.

Optional Wheels
If the flat-panel is a shared resource Vision offer a dolly which converts the assembly into a portable solution. The weighted base is 950mm (37.4″) wide by 660mm (26″) deep and uses big 100mm (4″) wheels to maximise stability.

Optional Shelf
A shelf is available which can be mounted in front, behind, above, or below the flat-panel.

Levelling Floorplate
An adjustable floor plate allows for floors which are not flat or level.

Height Limiter
The maximum travel height can be adjusted for rooms with lower ceilings.
