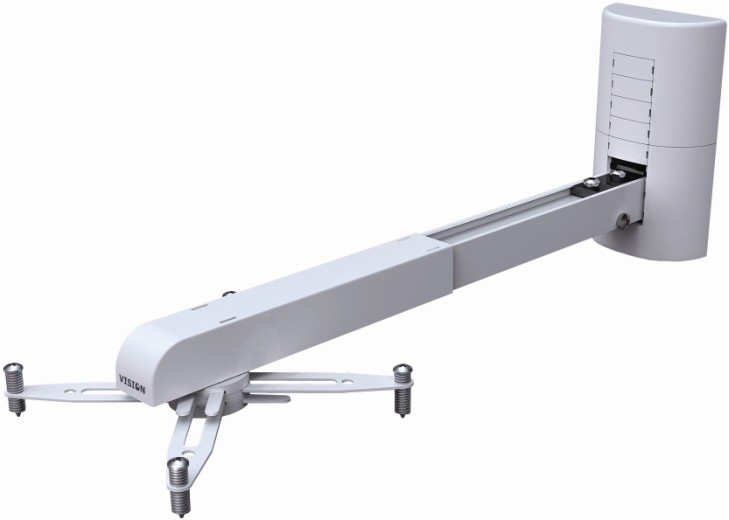

The brand new Techmount UST (Ultra Short Throw) overcomes the common difficulties of wall boom installation with an innovative new lateral height adjustment which results in easy fine tuning.
The TM-UST features Vision's popular spider fitting, and is specifically designed to mount the Hitachi ultra short throw projectors, but with the addition of a simple 1.3m extension pole is suitable for all other brands of short-throw projectors.
Easy Up/Down Adjustment
Ultra short-throw projectors are susceptible to poor setup; tilting fore and aft will always result in an inferior image with uneven focus. The clever vertical adjustment screw means you adjust the boom to the correct throw distance, then turn the screw on the wall plate for height adjustment. The projector is kept perfectly perpendicular to the screen resulting in a perfect image.
Telescopic Design
The two-part boom allows easy adjustment of image size, and extends up to 700mm - enough for the Hitachi ultra short throw projector for example, to projector an image width of 2000mm. Enough for use with a very large interactive whiteboard (up to and including 94") or a standard 2m projection screen. The 1.3m extension pole takes the maximum throw distance to 1.5m.
Extension Pole Order Code: TM-UST EXT [SAP: 1702371]
Lightweight Boom
The wall plate is made of steel for rigidity, and the boom is constructed of aluminium to reduce the overall cantilever load on the wall, and to allow excess length to be easily cut off.
Plenty of Headroom
A limiting factor of short-throw installations is the ceiling height; the bigger the image, the higher the projector needs to be. The Techmount is designed to mount the projector as close to the ceiling as possible.
