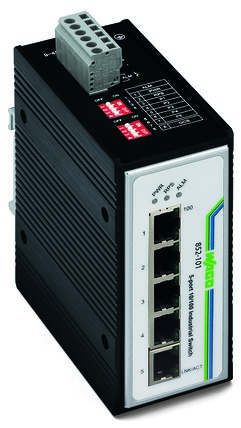

Wago 852-101 Fast Ethernet (10/100) Black network switch

5 x RJ-45, 10/100Base-T(X), IEEE 802.3u/802.3, 3.84 W, IP30, 50 x 120 x 105 mm, Auto-MDI/MDIX, store‐and‐forward The 852‐101 Industrial Switch is a 5-port 10/100Base‐TX Ethernet switch.
The switch has a rugged housing, redundant power supply and function monitoring with a relay. These functions make it ideal for a wide range of applications.


- Redundant DC power supply
- Large supply voltage range: 9 ... 48 V
- DIP switches to set alarm functions
- Full compliance with IEEE802.3, 802.3u stantards
- Non‐blocking, store‐and‐forward switching
- Autonegotiation at all 10/100Base TX ports
- Auto-MDI/MDIX (crossover) at all 10/100Base TX ports
