性能
| 散热 |
256 BTU/h |
| 并发连接 |
9200000 |
| 系统日志 |
Y |
端口 & 界面
| SFP/SFP+端口数量 |
2 |
| SFP模块插槽数量 |
2 |
协议
| 路由协议 |
BGP, OSPF, RIP-1, RIP-2 |
| 管理协议 |
SNMPv2/v3 |
| 支持网络协议 |
IPv6, HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, PPPoE, DynDNS |
数据传输
| 虚拟专用网通过 |
5427 Mbit/s |
| 分公司的VPN |
500 |
| 移动VPN的IPSec |
500 |
| 移动VPN的SSL |
500 |
| IPS / IDS的吞吐量 |
5632 Mbit/s |
| 防火墙通过 |
8192 Mbit/s |
联网
| VLAN 数量 |
500 |
| 支持服务质量（QoS） |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
环境条件
| 非运行高度 |
0 - 4570 m |
| 工作高度 |
0 - 3000 m |
8Gb/s, 6 x Gigabit Ethernet, 2 x SFP, VPN + 1 year LiveSecurity

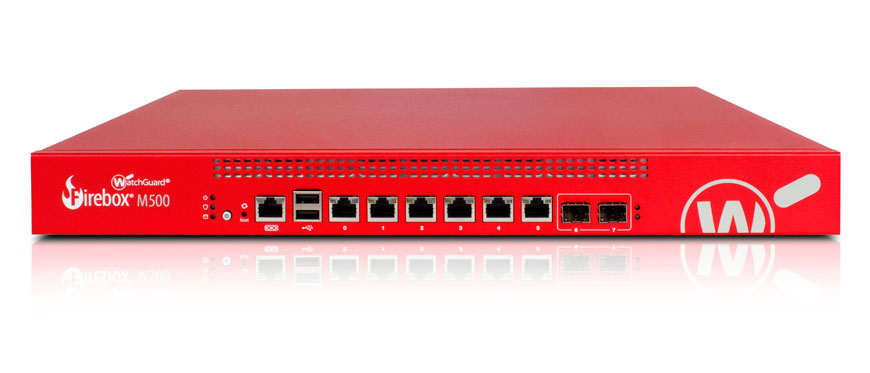

WatchGuard Firebox M500 Firewall
Firebox M400 and M500 firewalls are specifically engineered for mid-sized and distributed enterprises that are struggling to effectively and affordably secure networks in the face of explosive growth in bandwidth rates, encrypted traffic, video use, and connection speeds.
With an operating system built on the latest generation of processors from Intel, the M400 and M500 have all the power they need to run their security scanning engines in parallel, without causing a bottleneck in performance. This ensures network pros never have to compromise network security for performance.
Comprehensive Protection
Best-of-breed security services boost protection in critical attack areas, including gateway AV, URL and web content filtering, intrusion prevention, app control, and spam blocking.
Real-time Visibility
A suite of big-data style visibility and reporting tools are included at no additional cost. Use the Policy Map dashboard to quickly find active and misconfigured policies and drill down as needed.
Maximum Network Uptime
High availability capabilities – active/active and active/passive – ensure your network is always up and running. Buy two M400s or M500s for a high availability pair and receive 50% off the cost of the second device.
Outstanding Performance
Up to 8 Gbps firewall throughput and 1.7 Gbps UTM throughput. Turn on optional security services and still see up to 1.7 Gbps throughput.
3 Ways to Manage Your Appliance
You have the power to choose how you manage your WatchGuard appliance, including WatchGuard System Manager, the command line interface, and a web UI for access from anywhere, anytime.
Quick and Secure Setup
Take advantage of innovative features like drag-and-drop VPN creation and RapidDeploy technology to make fast work of extending your network.
Advanced Networking
Intuitive management console enables quick copying of corporate policy across multiple appliances.
Remote Connectivity Options
Includes SSL and IPSec VPN for flexibility in remote access with support for Apple iOS devices such as the iPhone, iPad, and iPod touch.
Application Control
Control the use of Web 2.0 and other applications on your network for tighter security, better use of bandwidth, and greater productivity.
