技术细节
上行链路频率范围 |
824 - 894 / 1850 - 1990 MHz |
数据网络 |
UMTS, GSM, 2G, 3G |
下行链路频率范围 |
824 - 894 / 1850 - 1990 MHz |
上行链路增益 |
75 dB |
类型 |
Car cellular signal booster |
噪声系数 |
3.5 dB |
824 - 1990 MHz, 75 dB, F, 1.5 lbs

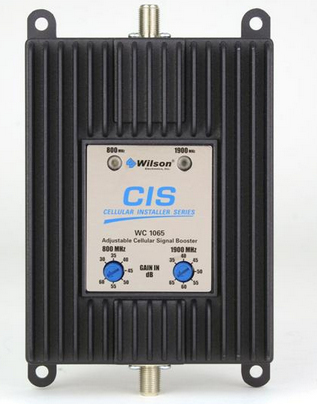

The new WC 1065 and 1075 cellular signal boosters from Wilson Electronics are wireless, dual-band, boosters designed especially for the Custom Home Integration market. With gain of 65dB and 75dB respectively, they provide a substantial boost to cellular signals resulting in greater coverage areas inside homes, offices and commercial spaces. 75ohm “F” connectors eliminate the need for new tools or cable stocks. RG6 or RG11 coax, already used by most installers, does the job. Adjustable gain controls allow the installer to set separate gain levels for 850 MHz and 1900 MHz frequencies. This gives the installer greater flexibility in the location of the booster’s inside and outside antennas, and helps optimize the booster’s gain to match the precise requirements of the installation. WC signal boosters support multiple simultaneous connections, and work with all cellular devices operating on North American 850 MHz and 1900 MHz networks (except Nextel/iDEN). Wilson boosters feature cell site protection technologies developed through cooperative effort between Wilson and several major cellular carriers that prevent the possibility of interference with any nearby cell tower.
- Separate adjustable gain controls for optimum signal boost
- Provides a strong, reliable signal even in weak signal areas
- Compatible with North American 800 and 1900 MHz cellular networks*
- Configurable with a variety of Wilson cellular antennas and in-line signal boosters to fit
- virtually any large building installation FCC type accepted, Industry Canada certificated
