其他功能
| 格式要素 |
Low Profile PCI |
| Mac兼容性 |
N |
端口 & 界面
| 內置式 |
Y |
| USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
| 主机接口 |
PCIe |

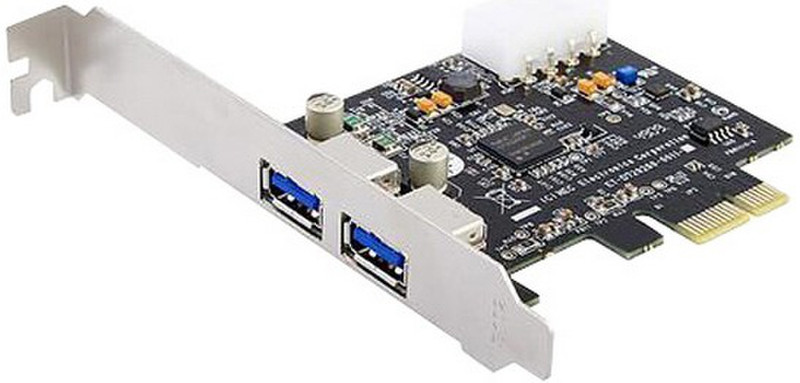

USB 3.0 2-Port PCI Express Card
- USB3.0 PCI Express 2.0 x 1 Lane Host Adapter (NEC-Chip!).
- Supports PCIe 1.0 and PCIe 2.0 motherboard.
- Compliant with Universal Serial Bus 3.0 Specification Revision 1.0.
- Two USB 3.0 Type A downstream connectors on board.
- All USB ports can handle SuperSpeed (5Gbps), HighSpeed (480Mbps), FullSpeed (12Mbps), and LowSpeed (1.5Mbps) transaction.
- Support any USB3.0, USB2.0 and USB1.1 devices.
- Compliant with PCI Express Specification 2.0.
- Low Profile PCI Form Factor.
- Includes an additional Low Profile PCI Bracket.
- Built-in power connector support the 5V Max 1.5A bus power one USB port from system power supply.
- 64bit and 32bit Windows 7, Vista, XP drivers support.
- Chipset : NEC.
- Fully RoHS compliant.
