重量和尺寸
可放置 PC 深度(最大值) |
720 mm |
可放置 PC 高度(最大值) |
1320 mm |
可放置 PC 宽度(最大值) |
540 mm |
技术细节
锁定方式 |
Key |
高度调整 |
Y |
推荐使用 |
Notebook |
Locking |
Y |
支架数量 |
30 shelves |
类型 |
Multimedia cart |
轮子数量 |
4 wheel(s) |

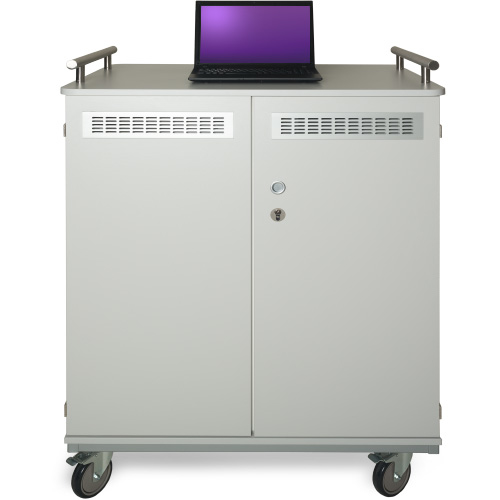

1320 x 1300 x 720mm, 70kg, 30 notebooks, Cart, Steel
Professional Mobile Charging Trolley with: Space for up to 30 Notebooks (28 defeatable power connections); 2x AVM Frits!BOX WiFi-3272 802.11n/g/b/a up to 300Mbit/s(gross) backward compatible; optional switch possible; transportation and storage trolley with technical-slots; front and rear are lockable; auto cable roll up with 5 metre power kettle; power-limiter; 30 padded NB-slot for up to 17” widescreen and a maximum thickness of 54mm; NB-slot-size H5.5cm x W45cm x D35cm; 3x LAN and 1x DSL-interface; technical-slots for 30 Notebook power-supplies (max. measures 30x60x140mm); complete electronic wiring with charging-system; 2 power jacks 230V/3A + 2x LAN-interfaces on the rear; 1 LAN- + 1 DSL-interface on the right side; 4 internal power jacks for printer/ projector, etc.; toggle switch: Charging / Off / Full Operation.
Special: Barrel lock for front and rear, metal handlings, square-steel-frame-rack, optional printer- /projector-slot (affects the total amount of notebooks), variable height-adjustment.
Options & Accessories: Document-Bag, Manual, VDE-Test- and Measuring-protocol, DSL connection-cable, fixture-material for the power supplies.
